ODB17567-48HB10A

Active

Orion Fans

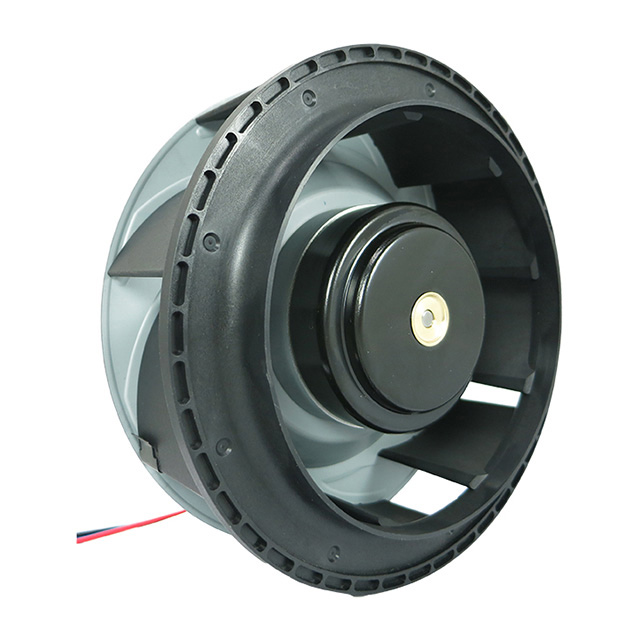

FAN IMP MTRZD 175X67MM 48VDC

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 175X67MM 48VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ODB17567-48HB10A	ODB17567 Series

Air Flow	8.34 m³/min	8.34 m³/min
Air Flow	298 CFM	298 CFM
Approval Agency	TUV, CE, cURus, UR	TUV, CE, cURus, UR, CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	1.03 A	1.03 - 4.2 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Thermoplastic	Thermoplastic
Material - Frame	Aluminum	Aluminum
Noise	64 dB(A)	64 dB(A)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	50.4 W	50.4 W
RPM	3000 RPM	3000 RPM
Size / Dimension [diameter]	175 mm Dia	175 mm Dia
Static Pressure	1.38 in H2O	1.38 in H2O
Static Pressure	343.7 Pa	343.7 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	-	12 - 24 VDC
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	54 VDC	14 - 54 VDC
Voltage Range [Min]	22 VDC	8 - 22 VDC
Weight	900 g	900 g
Weight	1.9 lbs	1.9 lbs
Width [x]	67 mm	67 mm

FAN BLOWER, MOTORIZED IMPELLER, 24 VDC, DC, 175 MM, 67 MM, 338 CFM

Part	Air Flow	Air Flow	Fan Type	Lifetime @ Temp.	Termination	Noise	Weight	Weight	Static Pressure	Static Pressure	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Material - Frame	Approval Agency	Power (Watts)	Current Rating (Amps)	Width [x]	Material - Blade	Size / Dimension [diameter]	RPM	Voltage - Rated	Voltage - Rated [custom]	Voltage Range [Max]	Voltage Range [Min]
Orion Fans ODB17567-24HB10A	8.34 m³/min	298 CFM	Motorized Impellers	40000 Hrs	4 Wire Leads	64 dB(A)	900 g	1.9 lbs	1.38 in H2O	343.7 Pa	PWM Control, Speed Sensor (Tach)	65 °C	65 °C	-10 °C	-10 °C	Ball	Aluminum	CE, cURus, TUV, UR	50.4 W	2.1 A	67 mm	Thermoplastic	175 mm Dia	3000 RPM	24 VDC
Orion Fans ODB17567-48HB10A	8.34 m³/min	298 CFM	Motorized Impellers	40000 Hrs	4 Wire Leads	64 dB(A)	900 g	1.9 lbs	1.38 in H2O	343.7 Pa	PWM Control, Speed Sensor (Tach)	65 °C	65 °C	-10 °C	-10 °C	Ball	Aluminum	CE, cURus, TUV, UR	50.4 W	1.03 A	67 mm	Thermoplastic	175 mm Dia	3000 RPM		48 VDC	54 VDC	22 VDC
Orion Fans ODB17567-12HB10A	8.34 m³/min	298 CFM	Motorized Impellers	40000 Hrs	4 Wire Leads	64 dB(A)	900 g	1.9 lbs	1.38 in H2O	343.7 Pa	PWM Control, Speed Sensor (Tach)	65 °C	65 °C	-10 °C	-10 °C	Ball	Aluminum	CE, TUV	50.4 W	4.2 A	67 mm	Thermoplastic	175 mm Dia	3000 RPM	12 VDC		14 V	8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 94.14

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 298.0 CFM (8.34m³/min) 4 Wire Leads
