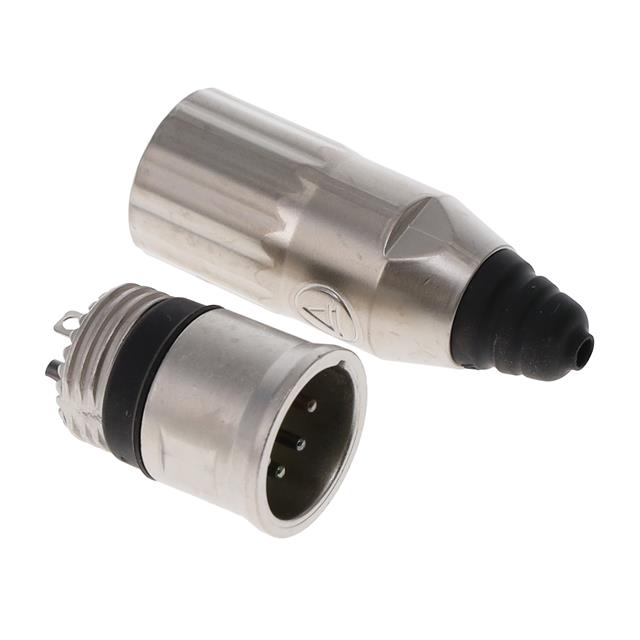

CONN RCPT MALE XLR 4P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA4MZH

Applications	Audio, Instrumentation
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [Max] [diameter]	7.24 mm
Cable Opening [Max] [diameter]	0.285 in
Cable Opening [Min] [diameter]	0.15 in
Cable Opening [Min] [diameter]	3.81 mm
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded

CONN RCPT MALE XLR 4P SOLDER CUP

Part	Ingress Protection	Shielding	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Color	Shell Material	Contact Finish - Mating	Primary Material	Connector Type	Shell Size - Insert	Backshell Material, Plating	Number of Positions	Fastening Type	Orientation	Shell Finish	Applications	Features	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Switchcraft Inc. AAA4MZH	IP66	Shielded	Copper Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Silver	Zinc Alloy	Silver	Metal	Male Pins, Receptacle	XLR	Nickel, Zinc Alloy	4	Latch Lock	Keyed	Nickel	Audio, Instrumentation	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	65 °C	-40 °C	Free Hanging (In-Line)
