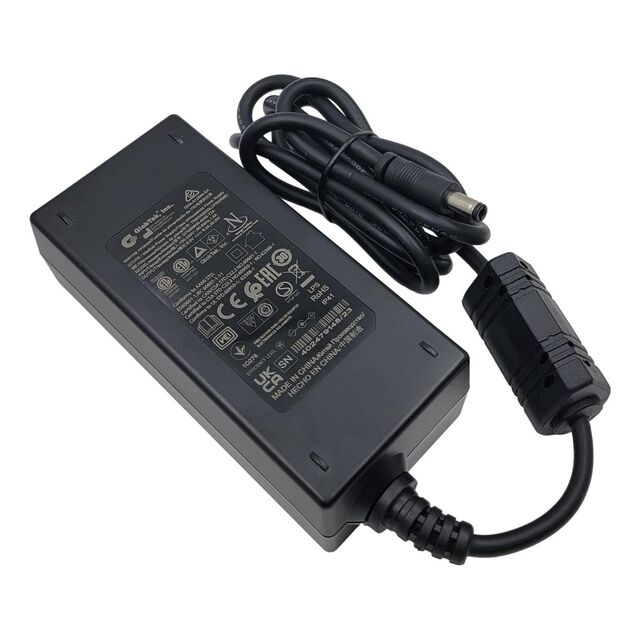

Specification	TR9WA8000LCPIM(R6B)

Applications	Medical, ITE (Commercial), Household Appliances
Approval Agency	ETL, PSE, VCCI, RCM, LPS, CE, S-Mark, CB, cETLus, UKRSepro
Cord Length	47.2 in
Current - Output (Max)	8 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.5 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension Height	1.35 in
Size / Dimension Length	4.63 in
Size / Dimension Width	2.11 in
Standard Number	62368-1, 60950-1, 60601-1-11, 60335-1, 60601-1-2
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC

TR9WA8000 Series

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Applications	Form	Cord Length	Region Utilized	Current - Output (Max)	Input Type	Polarization	Voltage - Output	Operating Temperature (Max)	Operating Temperature (Min)	Standard Number	Input Connector	Power (Watts)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Approval Agency	Efficiency	No Load Power Consumption (Max)
GlobTek, Inc. TR9WA8000CCPIM(R6B)	90 V	264 V	Household Appliances ITE (Commercial) Medical	Desktop (Class II)	47.2 in	International	8 A	Cord (Sold Separately)	Positive Center	5 VDC	40 °C	-20 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C18	40 W	2.11 in	1.35 in	4.63 in	2.1 mm	Barrel Plug	11 mm	5.5 mm	CB CE cETLus ETL LPS PSE RCM S-Mark UKRSepro VCCI	Level VI	75 mW
GlobTek, Inc. TR9WA8000LCPIM(R6B)	90 V	264 V	Household Appliances ITE (Commercial) Medical	Desktop (Class II)	47.2 in	International	8 A	Cord (Sold Separately)	Positive Center	5 VDC	40 °C	-20 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C18	40 W	2.11 in	1.35 in	4.63 in	2.5 mm	Barrel Plug	11 mm	5.5 mm	CB CE cETLus ETL LPS PSE RCM S-Mark UKRSepro VCCI	Level VI	75 mW
