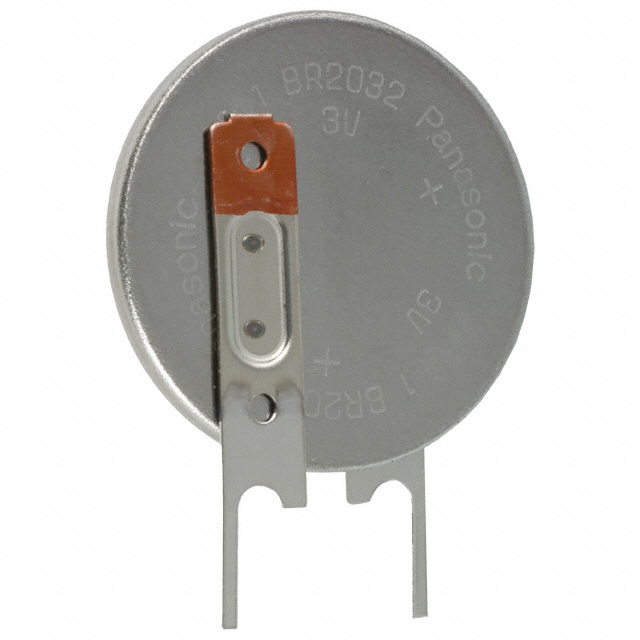

BR-2032/VBN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BR-2032/VBN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BR-2032/VBN |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Chemistry | Lithium Poly-Carbon Monofluoride |
| Capacity | 190 mAh |
| Discharge Rate | 30 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 20 mm, 0.79 in |
| Size / Dimension [z] | 0.13 in, 3.2 mm |
| Termination Style | PC Pin (Vertical Mount) |
| Voltage - Rated | 3 VDC |
| Weight | 2.5 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 20 | $ 1.24 | |||
| 40 | $ 1.16 | |||
| 100 | $ 1.03 | |||
| 480 | $ 0.96 | |||
| 960 | $ 0.92 | |||
Description
General part information
BR-2032 Series
Coin, 20.0mm Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
