W58-124-9019910

Obsolete

ITT Cannon, LLC

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Obsolete

ITT Cannon, LLC

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN BNC PLUG STR 75 OHM CRIMP

Part	Connector Type	Mounting Type	Contact Termination	Cable Group	Frequency - Max [Max]	Impedance	Number of Ports	Body Material	Mating Cycles	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Fastening Type	Center Contact Material	Connector Style	Body Finish	Insertion Loss	Housing Color	Center Contact Plating	Voltage Rating
ITT Cannon, LLC W58-124-9019910	Male Pin, Plug	Free Hanging (In-Line)	Crimp	735A	2 GHz	75 Ohms	1	Phosphor Bronze	500	1 Connector, 1 Ferrule	85 °C	-40 °C	Crimp	Bayonet Lock	Beryllium Copper	BNC	Nickel	0.2 dB	Silver	Gold	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

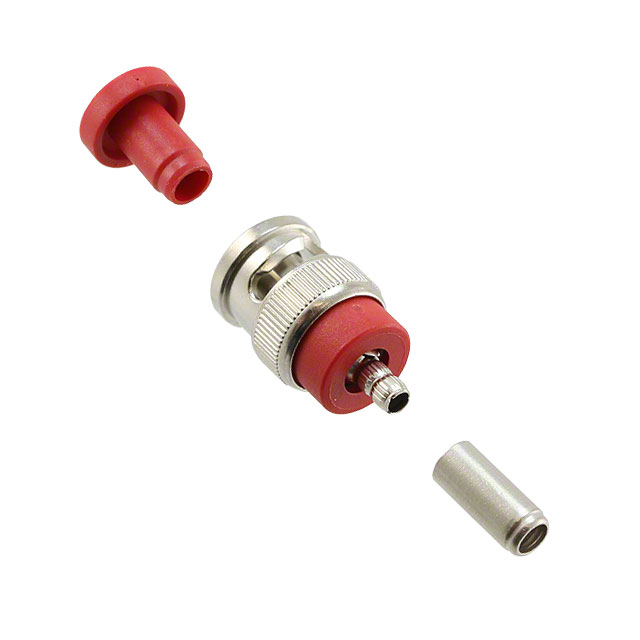

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
