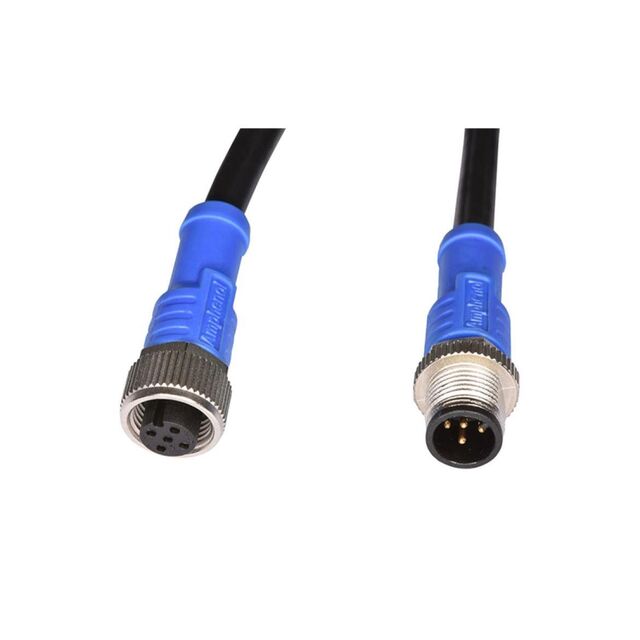

HMC-000505-0MF-CSA10
ActiveAmphenol LTW
CIRC CBL 5POS RCPT TO PLUG 32.8'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC-000505-0MF-CSA10 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof; NMEA 2000 |
| Shielding | Shielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.50 | |
| 10 | $ 48.03 | |||
| 30 | $ 44.45 | |||
| 50 | $ 42.87 | |||
| 100 | $ 40.83 | |||
| 250 | $ 38.99 | |||
Description
General part information
HMC-000505 Series
Circular Cable Assembly Shielded 32.8' (10.00m)
