953697-2
ActiveTE Connectivity AMP Connectors

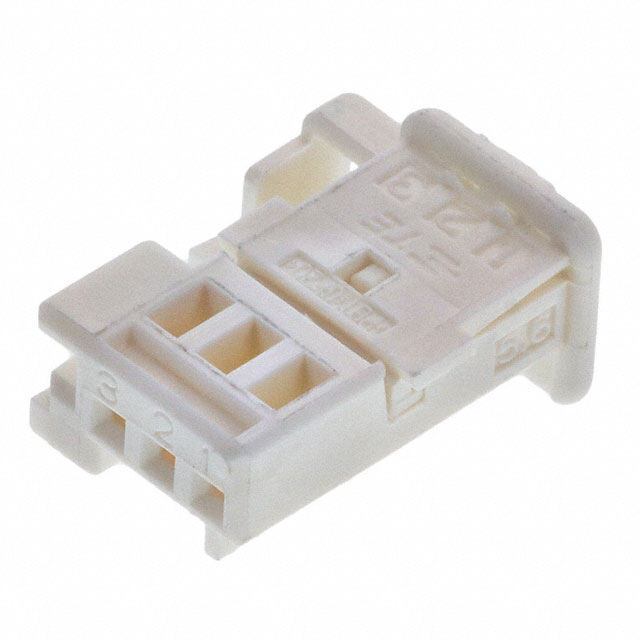

CONN RCPT HSG 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
953697-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 953697-2 | 953697 Series |
|---|---|---|
| - | - | |
| Color | White | Black, White, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | - | Latch Lock |
| Features | - | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
953697 Series
CONN RCPT HSG 3POS 2.54MM
| Part | Number of Rows | Insulation Material | Contact Termination | Mounting Type | Note | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Type | Color | Features | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 953697-1 | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Free Hanging (In-Line) | Contacts Not Included | 2.54 mm | 0.1 in | 85 °C | -40 °C | Receptacle | Female Socket | Black | ||
TE Connectivity AMP Connectors 953697-2 | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Free Hanging (In-Line) | Contacts Not Included | 2.54 mm | 0.1 in | 85 °C | -40 °C | Receptacle | Female Socket | White | ||
TE Connectivity AMP Connectors 953697-3 | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 85 °C | -40 °C | Receptacle | Female Socket | Blue | Terminal Position Lock (TPA) | Latch Lock | |
TE Connectivity AMP Connectors 953697-4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.25 | |||
Description
General part information
953697 Series
3 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
Documents
Technical documentation and resources
