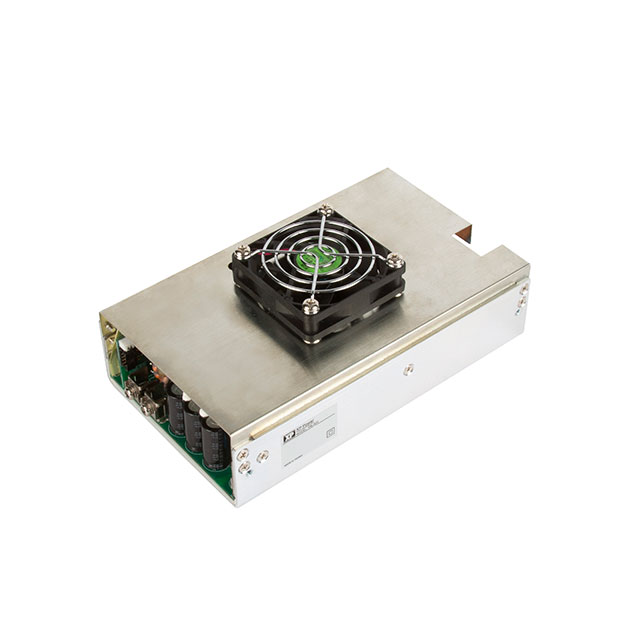

PBL500PS12C

Active

XP POWER

AC/DC CONVERTER 12V 250W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 12V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	PBL500PS12C

Applications	Medical
Approval Agency	UL, TUV, CB
Current - Output 1	20.83 A
Efficiency	90 %
Features	Remote On/Off, Remote Sense, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	250 W, 450 W
Size / Dimension [x]	180.3 mm
Size / Dimension [x]	7.1 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	67.1 mm
Size / Dimension [z]	2.64 in
Standard Number	60601-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Standard Number	Efficiency	Voltage - Output 1	Mounting Type	Number of Outputs	Applications	Features	Minimum Load Required	Type	Current - Output 1	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation
XP POWER PBL500PS12C	60601-1	90 %	12 V	Chassis Mount	1	Medical	PFC Remote On/Off Remote Sense Standby Output		Enclosed	20.83 A	250 W 450 W	CB TUV UL	264 VAC	80 VAC	67.1 mm	2.64 in	4 "	180.3 mm	7.1 "	101.6 mm	-10 °C	70 °C	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 310.79

General part information

Enclosed AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
