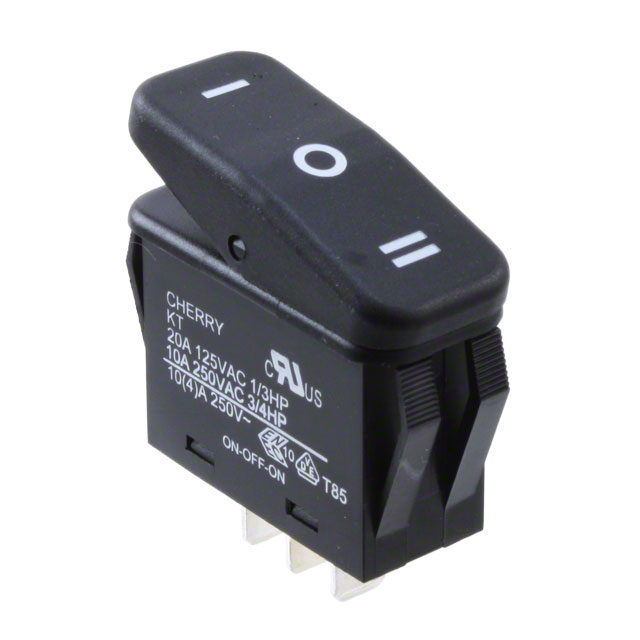

Specification	KTG2CNB1BBNNNN

Actuator Marking	I O II
Actuator Type	Convex (Reverse V)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating	21 A, 20 A
Electrical Life (Cycles)	6000 Cycles
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP56
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	36.8 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	15.2 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

KTG2CNB1 Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Ingress Protection IP Rating	Ingress Protection Description	Circuit	Mounting Type	Actuator Type	Voltage Rating - AC	Quick Connect Size (0.250")	Termination Style	Current Rating	Actuator Marking	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)
ZF Electronics KTG2CNB1BBNNNN	100000 Cycles	6000 Cycles	Black	14 V	Rectangular	36.8 mm	15.2 mm	IP56	Dust Protected Water Resistant	SPDT	Panel Mount Snap-In	Convex (Reverse V)	125 V	0.25 in	Quick Connect	20 A 21 A	I O II	On-Off-On	85 °C	-20 °C
