25113 BK199

Active

ALPHA WIRE

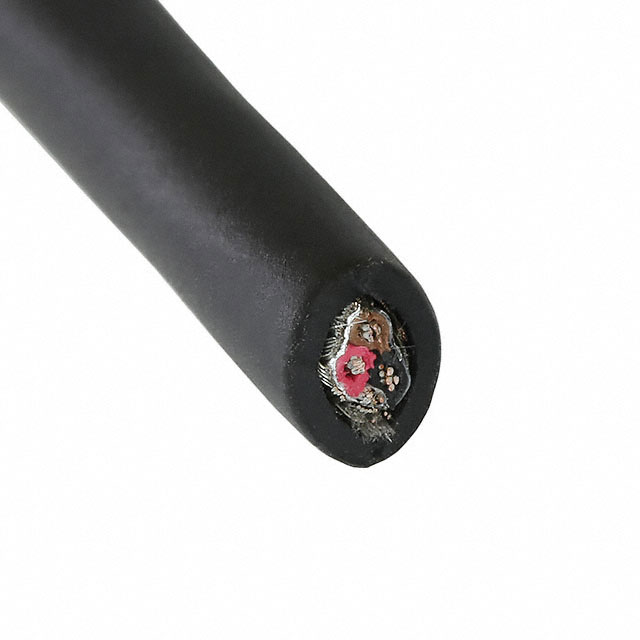

CABLE 3COND 24AWG BLACK SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 24AWG BLACK SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25113 BK199	25113 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.85 mm	4.85 mm
Jacket (Insulation) Diameter [diameter]	0.191 in	0.191 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Orange
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	3	3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Suprashield®	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 3COND 24AWG BLACK SHLD

Part	Shield Coverage	Length	Length	Conductor Insulation	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket (Insulation) Material	Voltage	Features	Jacket Color	Shield Material	Number of Conductors	Wire Gauge
ALPHA WIRE 25113 BK199	70 %, 100 %	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Copper, Tinned	32 AWG	7	Multi-Conductor	4.85 mm	0.191 in	ISO 10993, UL Style 20668	-30 ░C	90 °C	Braid, Foil	Polyurethane (PU)	300 V	Biological Compatibility, Drain Wire, Rip Cord	Black	Copper, Tinned, Suprashield®	3	24 AWG
ALPHA WIRE 25113 OR199	70 %, 100 %	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Copper, Tinned	32 AWG	7	Multi-Conductor	4.85 mm	0.191 in	ISO 10993, UL Style 20668	-30 ░C	90 °C	Braid, Foil	Polyurethane (PU)	300 V	Biological Compatibility, Drain Wire, Rip Cord	Orange	Copper, Tinned, Suprashield®	3	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.58

General part information

3 Conductor Multi-Conductor Cable Black 24 AWG Foil, Braid 1000.0' (304.8m)
