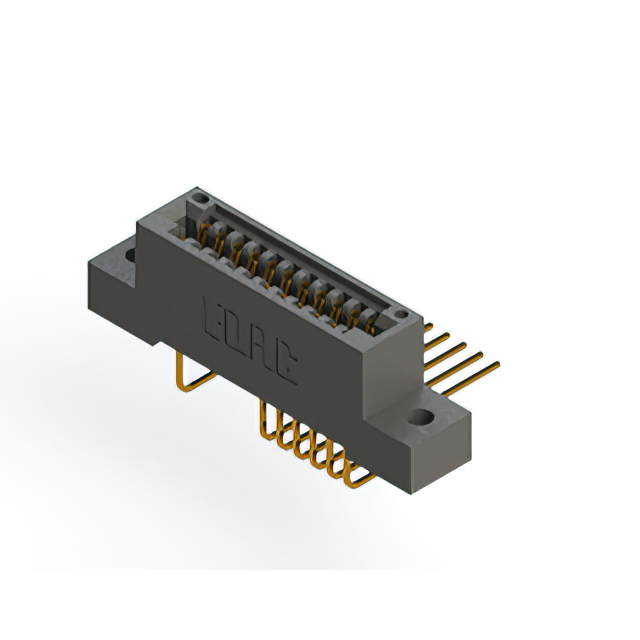

895-022-558-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-022-558-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-022-558-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-022 Series
...
| Part | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions/Bay/Row [custom] | Contact Type | Number of Positions | Mounting Type | Termination Rows | Pitch [x] | Pitch [x] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Gender | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Color | Card Type | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 11 | Cantilever | 22 positions | Through Hole Right Angle | 2 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Black | Non Specified - Dual Edge | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 11 | Cantilever | 22 positions | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Dual | Side Mount Opening Unthreaded | Black | Non Specified - Dual Edge | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 22 | Cantilever | 22 positions | Through Hole | 1 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Single | Side Mount Opening Unthreaded | Black | Non Specified - Single Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Wire Wrap | 11 | Cantilever | 22 positions | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Dual | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | Non Specified - Dual Edge | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 22 | Cantilever | 22 positions | Through Hole | 1 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Single | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | Non Specified - Single Edge | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 11 | Cantilever | 22 positions | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Dual | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Black | Non Specified - Dual Edge | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Wire Wrap | 22 | Cantilever | 22 positions | Through Hole | 1 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Single | Black | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 11 | Cantilever | 22 positions | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Dual | Side Mount Opening Unthreaded | Black | Non Specified - Dual Edge | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 22 | Cantilever | 22 positions | Through Hole | 1 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Single | M3 Threaded Insert Top Mount Opening | Black | Non Specified - Single Edge | |||||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Solder | 22 | Cantilever | 22 positions | Through Hole | 1 | 2.54 mm | 0.1 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Single | M3 Threaded Insert Top Mount Opening | Black | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 59.77 | |
Description
General part information
895-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
