SFW15R-1STE1LF

Active

Amphenol ICC (FCI)

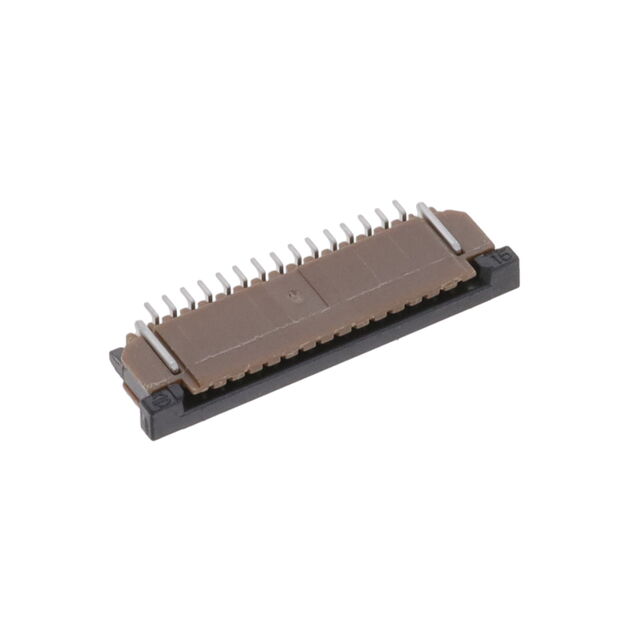

CONN FFC FPC BOTTOM 15POS 1MM RA

Deep-Dive with AI

Search across all available documentation for this part.

Documentsfci basics ffc fpc productpresentation Other Related Document SFW4R-2STAE1LF +2

SFW15R-1STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 15POS 1MM RA

Deep-Dive with AI

Documentsfci basics ffc fpc productpresentation Other Related Document SFW4R-2STAE1LF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW15R-1STE1LF

Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW15R Series

Part	Height Above Board [z]	Height Above Board [z]	Mating Cycles	Housing Material	FFC, FCB Thickness [z]	Pitch [x]	Pitch [x]	Flat Flex Type	Locking Feature	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Actuator Material	Cable End Type	Housing Color	Contact Finish	Contact Material	Number of Positions	Actuator Color	Material Flammability Rating	Connector/Contact Type	Voltage Rating	Features	FFC, FCB Thickness
Amphenol ICC (FCI) SFW15R-1STE9LF	0.106 in	2.7 mm	20	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm 0.33 mm	0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle	105 ░C	-55 °C	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Brown	Tin	Phosphor Bronze	15	Black	UL94 V-0	Contacts Bottom	100 V
Amphenol ICC (FCI) SFW15R-3STE1LF	0.106 in	2.7 mm	20	Polyphenylene Sulfide (PPS) Glass Filled		0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle	105 ░C	-55 °C	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Black	Tin	Phosphor Bronze	15	Black	UL94 V-0	Contacts Bottom	100 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW15R-4STE1	0.106 in	2.7 mm		Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm 0.33 mm	0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle			Solder	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Black	Tin Alloy	Phosphor Bronze	15	Brown	UL94 V-0	Contacts Top
Amphenol ICC (FCI) SFW15R-5STE1LF	0.106 in	2.7 mm	10	Polyphenylene Sulfide (PPS) Glass Filled		0.039 in	1 mm	CIC		Surface Mount Right Angle	105 ░C	-55 °C	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Brown	Tin	Phosphor Bronze	15		UL94 V-0	Contacts Bottom	100 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW15R-2STE1	0.106 in	2.7 mm		Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm 0.33 mm	0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle			Solder	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Brown	Tin Alloy	Phosphor Bronze	15	Black	UL94 V-0	Contacts Top
Amphenol ICC (FCI) SFW15R-1STE1LF	0.106 in	2.7 mm	20	Polyphenylene Sulfide (PPS) Glass Filled		0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle	105 ░C	-55 °C	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Brown	Tin	Phosphor Bronze	15		UL94 V-0	Contacts Bottom	100 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW15R-4STE1LF	0.106 in	2.7 mm	20	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm 0.33 mm	0.039 in	1 mm	FFC FPC	Slide Lock	Surface Mount Right Angle	105 ░C	-55 °C	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Notched Tapered	Black	Tin	Phosphor Bronze	15	Brown	UL94 V-0	Contacts Top	100 V	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW15R-3STAE5LF	0.106 in	2.7 mm		Polyphenylene Sulfide (PPS) Glass Filled		0.039 in	1 mm	FPC	Slide Lock	Surface Mount Right Angle			Solder	Polyphenylene Sulfide (PPS) Glass Filled	Tabbed	Black	Gold	Phosphor Bronze	15	Brown	UL94 V-0	Contacts Bottom			0.33 mm
