T4061310003-001
ActiveTE Connectivity AMP Connectors

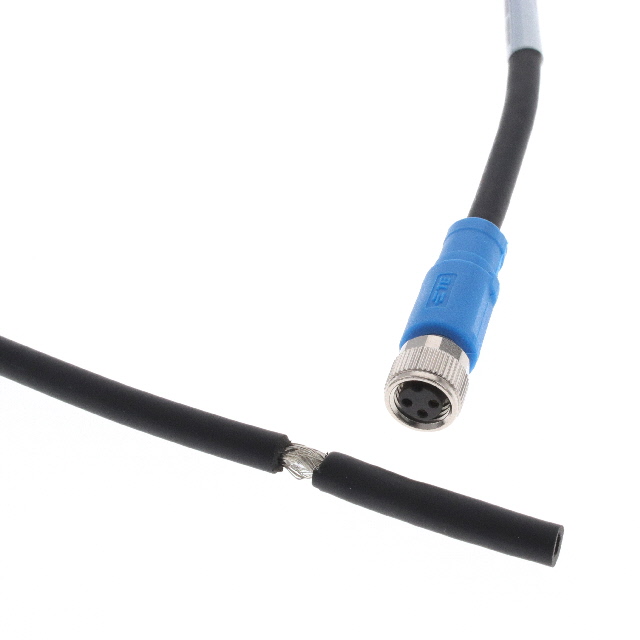

CIRC CBL 3POS PLUG TO WIRE 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4061310003-001
ActiveTE Connectivity AMP Connectors
CIRC CBL 3POS PLUG TO WIRE 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4061310003-001 | T40613 Series |
|---|---|---|
| 1st Connector Gender | Female Sockets | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Plug | Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Black | Gray, Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft | 1.64 - 9.84 ft |
| Length [x] | 500 mm | 3 - 500 m |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.10 | |
| 10 | $ 10.03 | |||
| 25 | $ 9.30 | |||
| 50 | $ 8.79 | |||
| 100 | $ 8.31 | |||
| 250 | $ 7.72 | |||
| 500 | $ 7.30 | |||
| 1000 | $ 6.90 | |||
T40613 Series
CBL CIRC 4POS FEM TO WIRE 9.84'
| Part | 1st Connector Shell Size - Insert | 1st Connector Number of Positions Loaded | Color | 1st Connector Mounting Type | Shielding | 1st Connector Number of Positions | 1st Connector Gender | Cable Type | Ingress Protection | 1st Connector Type | Length [x] | Length [x] | Usage | Cable Material | 2nd Connector Type | Assembly Configuration | 1st Connector Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4061320004-004 | M8 | All | Gray | Free Hanging (In-Line) | Shielded | 4 | Female Sockets | Round | IP67 - Dust Tight, Waterproof | Plug | 9.84 ft | 3 m | Industrial Environments | Polyurethane (PUR) | Wire Leads | Standard | A |
TE Connectivity AMP Connectors T4061320003-005 | M8 | All | Gray | Free Hanging (In-Line) | Shielded | 3 | Female Sockets | Round | IP67 - Dust Tight, Waterproof | Plug | Industrial Environments | Polyurethane (PUR) | Wire Leads | Standard | A | ||
TE Connectivity AMP Connectors T4061310003-001 | M8 | All | Black | Free Hanging (In-Line) | Shielded | 3 | Female Sockets | Round | IP67 - Dust Tight, Waterproof | Plug | 1.64 ft | 500 mm | Industrial Environments | Polyvinyl Chloride (PVC) | Wire Leads | Standard | A |
TE Connectivity AMP Connectors T4061320004-005 | M8 | All | Gray | Free Hanging (In-Line) | Shielded | 4 | Female Sockets | Round | IP67 - Dust Tight, Waterproof | Plug | Industrial Environments | Polyurethane (PUR) | Wire Leads | Standard | A |
Description
General part information
T40613 Series
Circular Cable Assembly Shielded 1.64' (500.00mm)
