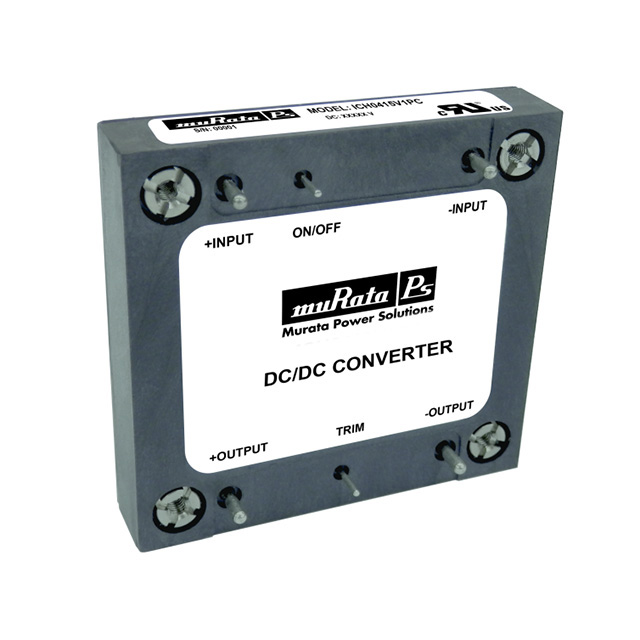

ICH0415V1PC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 360W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 360W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 24V 360W

Part	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Number of Outputs	Features	Mounting Type	Voltage - Isolation	Type	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Output 1
Murata Power Solutions Inc. ICH0415V1PC	Half Brick	15 A	-40 °C	105 C	360 W	1	OCP, OTP, OVP, Remote On/Off, SCP	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	63.5 mm	13.2 mm	2.4 "	63.5 mm	0.52 "	61 mm	95.9 %	9 V	36 V	Half Brick	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 24V 15A 9V - 36V Input
