General part information

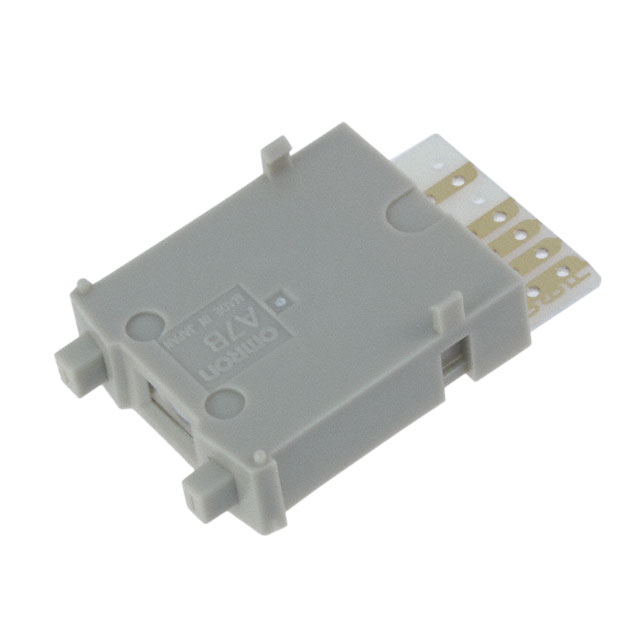

Thumbwheel Switch BCD 0.1A @ 50VAC/28VDC Panel Mount, Snap-In
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | A7BS-206 | A7BS Series |
|---|---|---|
| Accessory Type | - | Stop Pin |
| Actuator Type | Pushwheel | Pushwheel |
| Color | Light Gray | Light Gray |
| Contact Rating @ Voltage [x] | 28 VDC, 50 VAC, 0.1 A | 0.1 - 50 VDC |
| Depth Behind Flange | - | 43.5 mm |
| Depth Behind Flange [z] | 32.5 mm | 32.5 mm |
| Display Characters - Height [z] | 4.8 mm | 3.2 - 4.8 mm |
| Display Characters - Height [z] | 0.189 in | 0.126 - 0.189 " |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| End Caps | Sold Separately | Sold Separately |
| For Use With/Related Products | - | A7BS Series |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Number of Sections | 1 | 1 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Output Code | BCD | Hexadecimal, BCD |
| Read Out | - | F, 9 |
| Read Out | - | 0, A |
| Read Out [Max] | 9 | 9 |
| Read Out [Min] | 0 | 0 |
| Section Width [x] | 8 mm | 8 mm |
| Section Width [x] | 0.315 in | 0.315 in |
| Termination Style | Solder Pad, Card Edge | Solder Pad, Card Edge, Card Edge/Solder Pad with Component Mounting |
SWITCH THUMB HEX 0.1A 50V
| Part | Actuator Type | Color | End Caps | Display Characters - Height [z] | Display Characters - Height [z] | Mounting Type | Depth Behind Flange [z] | Number of Sections | Read Out [Max] | Read Out [Min] | Termination Style | Section Width [x] | Section Width [x] | Contact Rating @ Voltage [x] | Output Code | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Accessory Type | For Use With/Related Products | Read Out [Min] | Read Out [Max] | Depth Behind Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A7BS-254 | Pushwheel | Light Gray | Sold Separately | 0.126 " | 3.2 mm | Panel Mount, Snap-In | 32.5 mm | 1 | 9, F | 0, A | Card Edge, Solder Pad | 8 mm | 0.315 in | 0.1 A, 28 VDC, 50 VAC | Hexadecimal | 50000 Cycles | -10 °C | 65 °C | |||||
Omron Electronics Inc-EMC Div A7BS-S | Stop Pin | A7BS Series | |||||||||||||||||||||
Omron Electronics Inc-EMC Div A7BS-206 | Pushwheel | Light Gray | Sold Separately | 0.189 in | 4.8 mm | Panel Mount, Snap-In | 32.5 mm | 1 | Card Edge, Solder Pad | 8 mm | 0.315 in | 0.1 A, 28 VDC, 50 VAC | BCD | 50000 Cycles | -10 °C | 65 °C | 0 | 9 | |||||
Omron Electronics Inc-EMC Div A7BS-207 | Pushwheel | Light Gray | Sold Separately | 0.189 in | 4.8 mm | Panel Mount, Snap-In | 1 | Card Edge/Solder Pad with Component Mounting | 8 mm | 0.315 in | 0.1 A, 28 VDC, 50 VAC | BCD | 50000 Cycles | -10 °C | 65 °C | 0 | 9 | 43.5 mm |
