NHD-C12864WC-FSW-FBW-3V3-M

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X64 TRANSFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-C12864WC-FSW-FBW-3V3-M

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X64 TRANSFL

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-C12864WC-FSW-FBW-3V3-M

Background Color	White
Background Color	Black
Backlight	LED - White
Controller Type	ST7565R
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.4 mm
Dot Pitch [y]	0.4 mm
Dot Pixels [x]	128
Dot Pixels [y]	64
Dot Size [x]	0.36 mm
Dot Size [y]	0.36 mm
Graphics Color	Black
Interface	Parallel/Serial
Viewing Area [x]	58 mm
Viewing Area [y]	28.8 mm

NHD-C12864 Series

Part	Interface	Background Color	Background Color	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [y]	Dot Pitch [x]	Backlight	Viewing Area [y]	Viewing Area [x]	Display Mode	Dot Size [y]	Dot Size [x]	Display Type	Graphics Color	Controller Type	Dot Size [custom]	Dot Size [custom]	Viewing Area [z]	Dot Size [custom]	Dot Size [custom]	Dot Size [z]	Viewing Area [custom]	Viewing Area [custom]	Graphics Color
Newhaven Display Intl NHD-C12864WC-FSW-FBW-3V3	Parallel/Serial	White	Black	64	128	0.4 mm	0.4 mm	LED - White	28.8 mm	58 mm	Transflective	0.36 mm	0.36 mm	FSTN - Film Super-Twisted Nematic	Black	ST7565R
Newhaven Display Intl NHD-C12864A1Z-FSW-FBW-HTT	SPI	White	Black	64	128	0.52 mm	0.52 mm	LED - White	38.8 mm	70.7 mm	Transflective			FSTN - Film Super-Twisted Nematic	Black	ST-7565V	0.48 mm	0.48 mm
Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3-M	Parallel/Serial	White	Black	64	128	0.4 mm	0.36 mm	LED - White	28.8 mm	58 mm	Transflective	0.36 mm	0.36 mm	FSTN - Film Super-Twisted Nematic	Black
Newhaven Display Intl NHD-C12864GG-RN-GBW	Parallel 8-Bit	Gray		64	128	0.37 mm	0.37 mm	Without Backlight	49.53 mm		Reflective			STN - Super-Twisted Nematic	Black (Gray - Inverted)	ST-7565R			26.67 mm	0.35 mm	0.35 mm
Newhaven Display Intl NHD-C12864B2Z-RN-FBW	Parallel	Gray		64	128	0.31 mm	0.31 mm	Without Backlight	44 mm		Reflective	0.27 mm		FSTN - Film Super-Twisted Nematic	Black (Gray - Inverted)	ST-7565R			24 mm			0.27 mm
Newhaven Display Intl NHD-C12864M1R-FSW-FTW-3V6	Parallel/Serial	White	Black	64	128	0.43 mm	0.43 mm	LED - White			Transflective	0.39 mm	0.39 mm	FSTN - Film Super-Twisted Nematic	Black	SPLC-501C
Newhaven Display Intl NHD-C12864CZ-FSW-GBW	Parallel/Serial	Gray		64	128	0.56 mm	0.46 mm	LED - White			Transflective	0.51 mm	0.42 mm	STN - Super-Twisted Nematic	Blue								40 mm	65.5 mm
Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3	Parallel/Serial	White	Black	64	128	0.4 mm	0.4 mm	LED - White	28.8 mm	58 mm	Transflective	0.36 mm	0.36 mm	FSTN - Film Super-Twisted Nematic	Black
Newhaven Display Intl NHD-C12864HZ-FN-FBW	Parallel 8-Bit	Gray		64	128	0.3 mm	0.24 mm	Without Backlight	22.2 mm	33.8 mm	Transflective	0.29 mm	0.23 mm	FSTN - Film Super-Twisted Nematic	Black (Gray - Inverted)
Newhaven Display Intl NHD-C12864A1Z-FSR-FBW-HTT	SPI	Red		64	128	0.52 mm	0.52 mm	LED - Red	38.8 mm	70.7 mm	Transflective			FSTN - Film Super-Twisted Nematic	Black	ST-7565V	0.48 mm	0.48 mm							Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.25
		5	$ 17.16
		10	$ 16.06
		50	$ 15.15
		100	$ 14.42
		250	$ 14.16

Description

General part information

NHD-C12864 Series

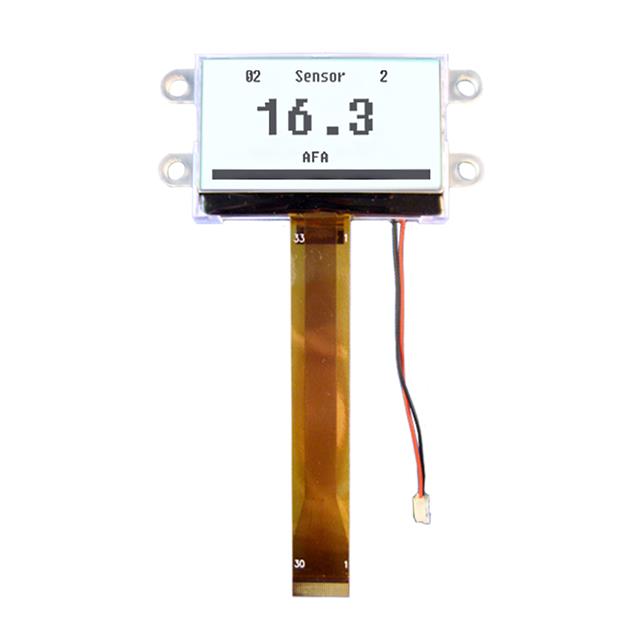

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel/Serial 128 x 64
