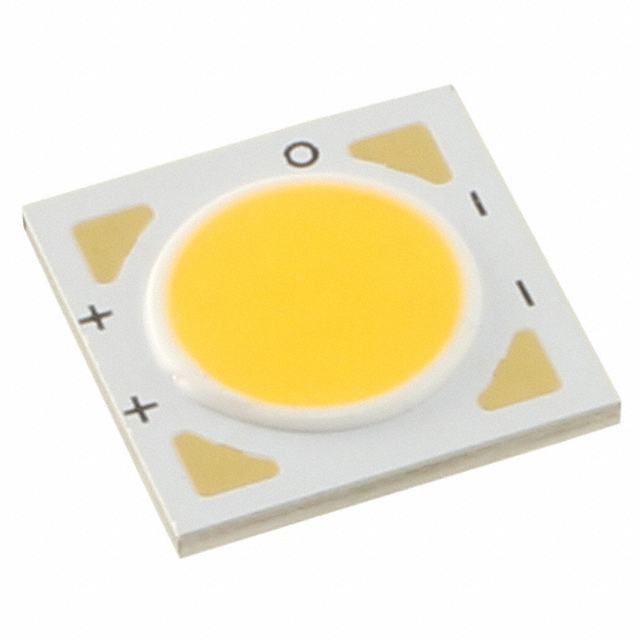

BXRE-40G0800-B-23

Obsolete

BRIDGELUX

LED COB V8 ARR NEUT WHT SQ 4000K

Deep-Dive with AI

Search across all available documentation for this part.

BXRE-40G0800-B-23

Obsolete

BRIDGELUX

LED COB V8 ARR NEUT WHT SQ 4000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V8 Array White, Neutral Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-40G0800-B-23	BXRE-40 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max [Max]	700 mA	1 - 950 mA
Current - Test	350 mA	1.05 - 900 mA
Features	-	Dimming
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	8.1 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	105 lm/W	105 - 192 lm/W
Luminous Flux @ Current/Temperature	637 lm	398 - 21657 lm
Size / Dimension [x]	12.5 mm	12.5 - 28 mm
Size / Dimension [y]	12.5 mm	12.5 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	17.4 V	8.4 - 57 V

BXRE-40 Series

LED COB V10 F90 WHT SQ 4000K

...

Part	Current - Max [Max]	Configuration	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	CCT (K)	Features	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Lens Type	Height [z]	CRI (Color Rendering Index)	Temperature - Test	Type	Color	Size / Dimension [y]	Size / Dimension [x]	Current - Test
BRIDGELUX BXRE-40G10F0-C-83	720 mA	Square	10 mm	34.87 V	4000 K	Dimming	136 lm/W	120 °	3416 lm	Flat	1.65 mm	90	85 °C	Chip On Board (COB)	Neutral, White
BRIDGELUX BXRE-40G40F0-C-83	2.16 A	Square	19.6 mm	38 V	4000 K	Dimming	142 lm/W	120 °	11612 lm	Flat	1.65 mm	90	85 °C	Chip On Board (COB)	Neutral, White	24 mm	24 mm
BRIDGELUX BXRE-40G4000-C-72	2.34 A	Square	19.2 mm	34 V	4000 K		127 lm/W	120 °	5038 lm	Flat	1.7 mm	90	85 °C	Chip On Board (COB)	Neutral, White	24 mm	24 mm
BRIDGELUX BXRE-40G10F0-B-82	200 mA	Square	10 mm	33.4 V	4000 K	Dimming	175 lm/W	120 °	1166 lm	Flat	1.65 mm	90	85 °C	Chip On Board (COB)	Neutral, White
BRIDGELUX BXRE-40E0400-B-83	1 A	Square	6.3 mm	8.4 V	4000 K		163 lm/W	120 °	478 lm	Flat	1.65 mm	80		Chip On Board (COB)	Neutral, White	12.5 mm	12.5 mm	320 mA
BRIDGELUX BXRE-40E2000-B-73	900 mA	Square	14 mm	33.9 V	4000 K		148 lm/W		2265 lm	Flat	1.7 mm	80	85 °C	Chip On Board (COB)	Neutral, White	19 mm	19 mm	450 mA
BRIDGELUX BXRE-40G65F0-B-82	950 mA	Square	23.3 mm	51.6 V	4000 K	Dimming	180 lm/W	120 °	8602 lm	Flat	1.65 mm	90	85 °C	Chip On Board (COB)	Neutral, White	28 mm	28 mm
BRIDGELUX BXRE-40E6500-C-73	2.88 A	Square	22.6 mm	50.7 V	4000 K		149 lm/W	120 °	10885 lm	Flat	1.7 mm	80	85 °C	Chip On Board (COB)	Neutral, White	28 mm	28 mm	1.44 A
BRIDGELUX BXRE-40G65F0-D-82	1.05 A	Square	23.3 mm	33.7 V	4000 K	Dimming	180 lm/W	120 °	6352 lm	Flat	1.65 mm	90	85 °C	Chip On Board (COB)	Neutral, White	28 mm	28 mm
BRIDGELUX BXRE-40G0800-B-23	700 mA	Square	8.1 mm	17.4 V	4000 K		105 lm/W	120 °	637 lm	Flat	1.7 mm	90	85 °C	Chip On Board (COB)	Neutral, White	12.5 mm	12.5 mm	350 mA
