R125225000

Active

Radiall USA, Inc.

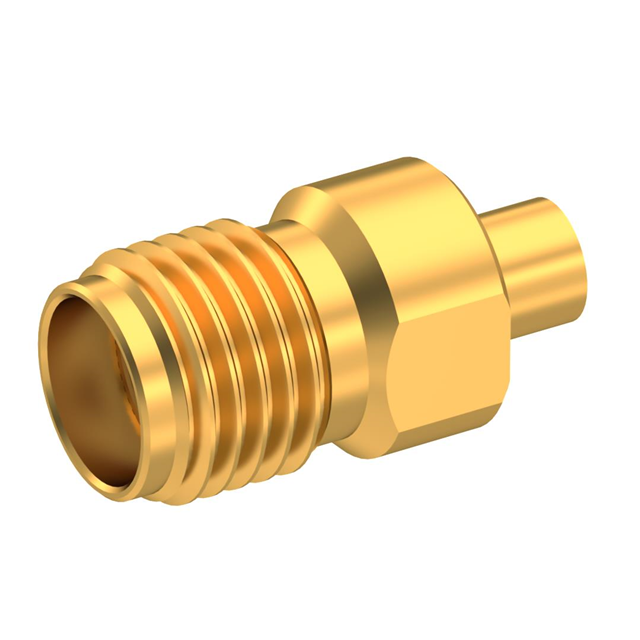

SMA / STRAIGHT JACK SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R125225000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Impedance	Number of Ports	Voltage Rating	Connector Style	Center Contact Material	Center Contact Plating	Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Body Material	Dielectric Material	Shield Termination	Contact Termination	Mating Cycles	Body Finish
Radiall USA, Inc. R125225000	50 Ohms	1	250 VDC	SMA	Beryllium Copper	Gold	Free Hanging (In-Line)	18 GHz	-65 ░C	105 ░C	Female Socket Jack	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Solder	Solder	500	Gold
Radiall USA, Inc. R125225901W	50 Ohms	1	500 V	SMA	Beryllium Copper	Gold	Free Hanging (In-Line)	18 GHz	-65 ░C	105 ░C	Female Socket Jack	Silver	Stainless Steel	Polytetrafluoroethylene (PTFE)	Crimp	Crimp	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 12.81

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
