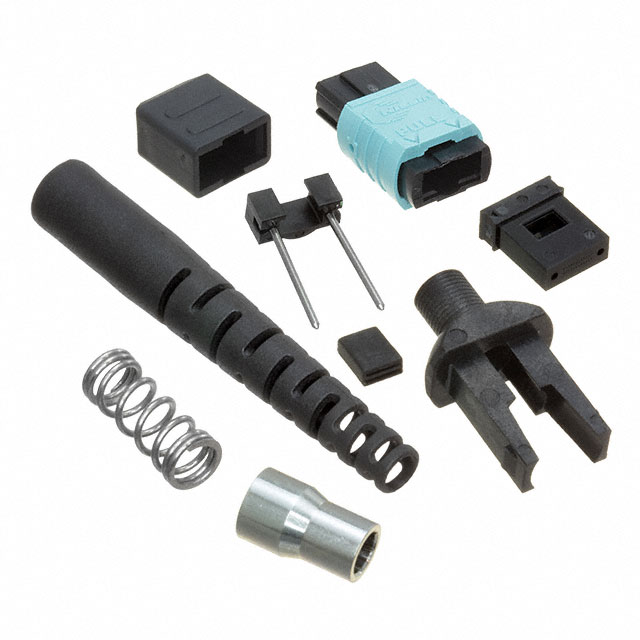

MPO-M-M-24-A-3S-HD-20N

Obsolete

Volgen + Furuno

24F MPO CONNECTOR, MALE, MM, AQU

Search across all available documentation for this part.

Obsolete

Volgen + Furuno

24F MPO CONNECTOR, MALE, MM, AQU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPO-M-M-24-A-3S-HD-20N	MPO-M Series

Attenuation - Typ	-1 dB	-1 dB
Cable Diameter [diameter]	3 mm	3 mm
Connector Style	MPO	MPO
Connector Type	Plug	Plug
Fastening Type	Push-Pull	Push-Pull
Features	Strain Relief, Dust Cap	Dust Cap, Strain Relief
Ferrule Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Fiber Cladding Diameter [diameter]	126 µm	126 µm
Fiber Core Diameter [diameter]	50 µm	50 µm
Housing Color	Aqua	Aqua
Housing Material	Stainless Steel, Polybutylene Terephthalate (PBT)	Stainless Steel, Polybutylene Terephthalate (PBT)
Mode	Multimode	Multimode
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)

24F MPO CONNECTOR, MALE, MM PREM

Part	Housing Material	Fiber Core Diameter [diameter]	Connector Type	Mode	Connector Style	Mounting Type	Fiber Cladding Diameter [diameter]	Ferrule Material	Features	Fastening Type	Housing Color	Attenuation - Typ	Cable Diameter [diameter]
Volgen + Furuno MPO-M-MP-24-A-1-HD-20N	Polybutylene Terephthalate (PBT), Stainless Steel	50 µm	Plug	Multimode	MPO	Free Hanging (In-Line)	126 µm	Polyphenylene Sulfide (PPS)	Dust Cap	Push-Pull	Aqua	-1 dB
Volgen + Furuno MPO-M-M-24-A-3S-HD-20N	Polybutylene Terephthalate (PBT), Stainless Steel	50 µm	Plug	Multimode	MPO	Free Hanging (In-Line)	126 µm	Polyphenylene Sulfide (PPS)	Dust Cap, Strain Relief	Push-Pull	Aqua	-1 dB	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Plug Connector MPO 126µm Aqua

Technical documentation and resources

No documents available
