Connectors, Interconnects
794246-1
ActiveTE Connectivity Raychem Cable Protection

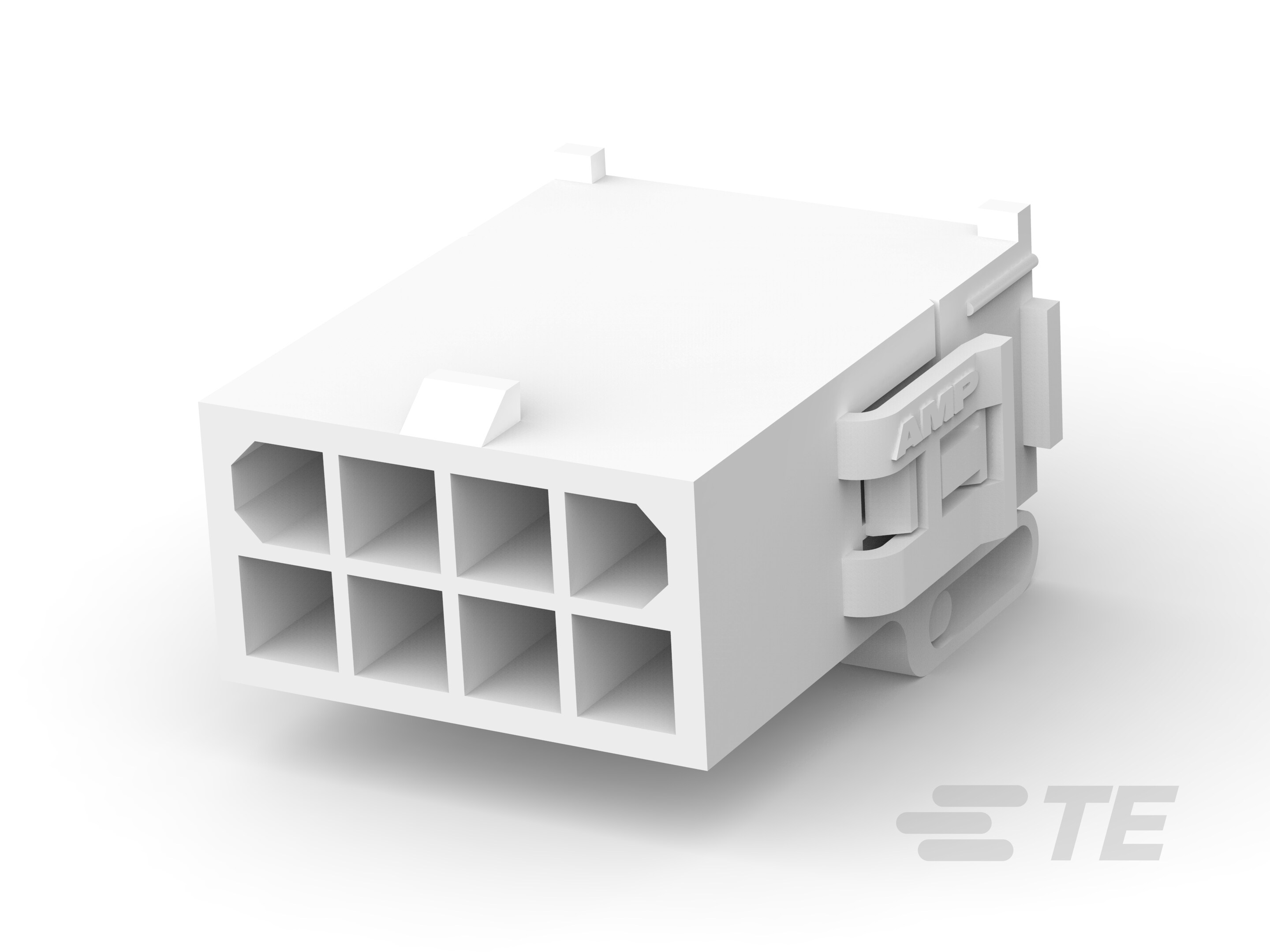

CONN RCPT HSG 8POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
794246-1
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 8POS 4.14MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 794246-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 4.14 mm |
| Pitch [x] | 0.163 in |
| Row Spacing | 4.14 mm |
| Row Spacing | 0.163 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 1.25 | |
Description
General part information
794246 Series
8 Rectangular Connectors - Housings Receptacle Natural 0.163" (4.14mm)
Documents
Technical documentation and resources
No documents available
