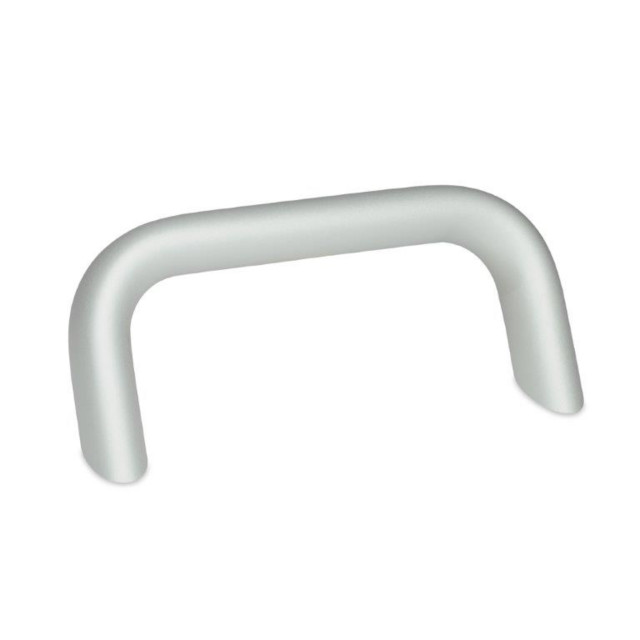

565.2-26-128-A-EL

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 5.04"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 5.04"

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Material	Height [z]	Height [z]	Thread/Screw/Hole Size	Type	Length - Center to Center [x]	Length - Center to Center [x]
J.W. Winco 565.2-20-112-A-SW	Screw Holes Back	Aluminum	1.89 in	48.01 mm	M6	Instrumentation	112.01 mm	4.41 in
J.W. Winco 565.2-20-128-A-BL	Screw Holes Back	Aluminum	1.89 in	48.01 mm	M6	Instrumentation	128.02 mm	5.04 in
J.W. Winco 565.2-26-128-A-BL	Screw Holes Back	Aluminum	2.13 in	54.1 mm	M8	Instrumentation	128.02 mm	5.04 in
J.W. Winco 565.2-26-128-A-SW	Screw Holes Back	Aluminum	2.13 in	54.1 mm	M8	Instrumentation	128.02 mm	5.04 in
J.W. Winco 565.2-26-160-A-BL	Screw Holes Back	Aluminum	2.13 in	54.1 mm	M8	Instrumentation	160.02 mm	6.3 in
J.W. Winco 565.2-20-128-A-EL	Screw Holes Back	Aluminum	1.89 in	48.01 mm	M6	Instrumentation	128.02 mm	5.04 in
J.W. Winco 565.2-26-160-A-SW	Screw Holes Back	Aluminum	2.13 in	54.1 mm	M8	Instrumentation	160.02 mm	6.3 in
J.W. Winco 565.2-26-128-A-EL	Screw Holes Back	Aluminum	2.13 in	54.1 mm	M8	Instrumentation	128.02 mm	5.04 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.87

General part information

Instrumentation Handle Aluminum Screw Holes, Back
