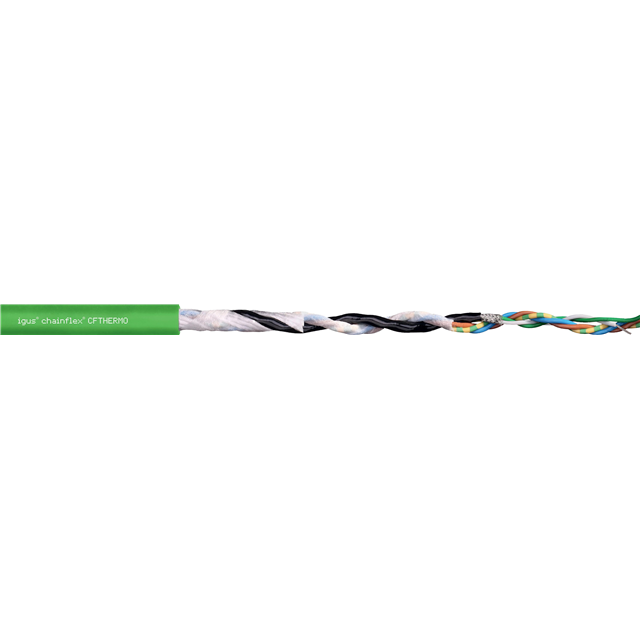

CFTHERMO-K-001

Active

Igus

CABLE 2COND 24AWG GRN/YLW 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE 2COND 24AWG GRN/YLW 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	CFTHERMO-K-001

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	5.51 mm
Jacket (Insulation) Diameter [diameter]	0.217 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Green, Yellow
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Thermocouple
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Shield Coverage	Length	Cable Type	Voltage	Shield Material	Conductor Insulation	Usage	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Conductor Material	Wire Gauge
Igus CFTHERMO-K-002	Braid	0.295 in	7.49 mm	Abrasion Resistant Oil Resistant	90 %	Enter Number of Feet in Order Quantity	Multi-Conductor	300 V	Copper Tinned	Thermoplastic Elastomer (TPE)	Thermocouple	Polyurethane (PU)	5	Green Yellow	Copper Bare	20 AWG 24 AWG
Igus CFTHERMO-J-001	Braid	0.217 in	5.51 mm	Abrasion Resistant Oil Resistant	90 %	Enter Number of Feet in Order Quantity	Multi-Conductor	300 V	Copper Tinned	Thermoplastic Elastomer (TPE)	Thermocouple	Polyurethane (PU)	2	Black	Copper Bare	24 AWG
Igus CFTHERMO-K-001	Braid	0.217 in	5.51 mm	Abrasion Resistant Oil Resistant	90 %	Enter Number of Feet in Order Quantity	Multi-Conductor	300 V	Copper Tinned	Thermoplastic Elastomer (TPE)	Thermocouple	Polyurethane (PU)	2	Green Yellow	Copper Bare	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Green, Yellow 24 AWG Braid Enter Number of Feet in Order Quantity
