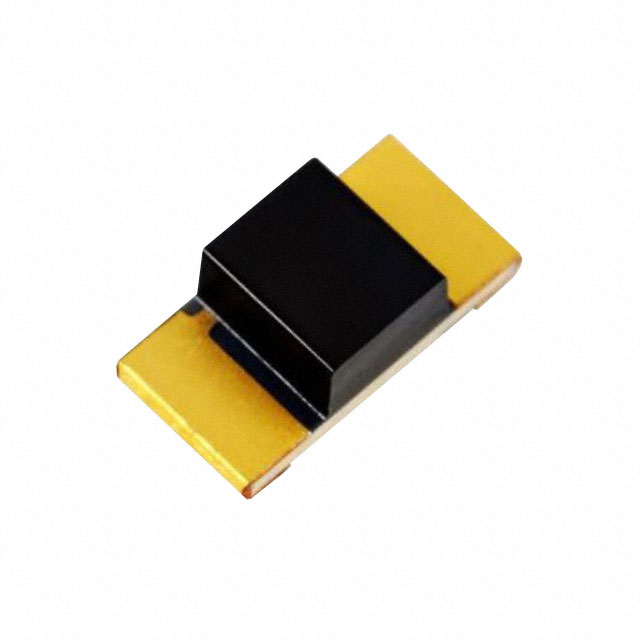

TPS1191RB-2-TR
ActiveStanley Electric Co
SENSOR PHOTO 900NM TOP VIEW 1206
Deep-Dive with AI
Search across all available documentation for this part.
TPS1191RB-2-TR
ActiveStanley Electric Co
SENSOR PHOTO 900NM TOP VIEW 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS1191RB-2-TR |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Package / Case | 1206 (3216 Metric) |
| Power - Max [Max] | 75 mW |
| Viewing Angle | 110 ° |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 900 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
Description
General part information
TPS1191 Series
Phototransistors 900nm Top View 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
