EP3WS510RJ

Active

TE Connectivity Passive Product

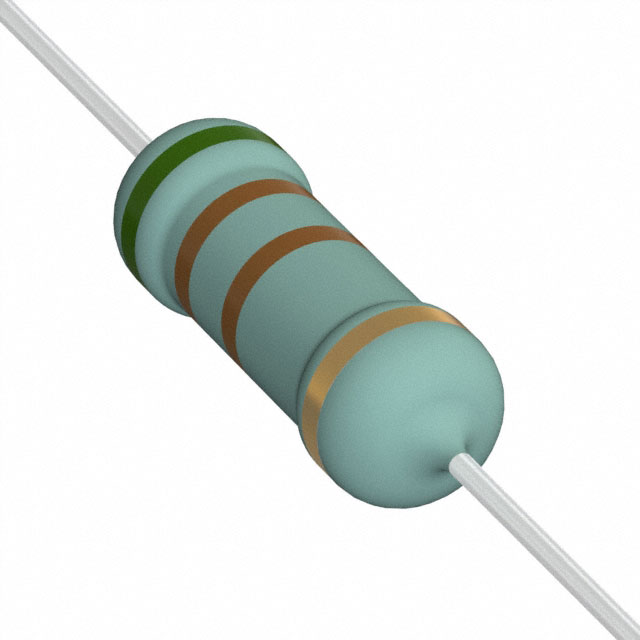

RES 510 OHM 5% 3W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EP3WS510RJ

Active

TE Connectivity Passive Product

RES 510 OHM 5% 3W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EP3WS510RJ

Composition	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	3 W
Resistance	510 Ohms
Size / Dimension [diameter]	6.5 mm
Size / Dimension [diameter]	0.256 in
Size / Dimension [x]	0.689 in
Size / Dimension [x]	17.5 mm
Supplier Device Package	Axial
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

EP3W Series

Part	Composition	Supplier Device Package	Tolerance	Features	Temperature Coefficient	Resistance	Package / Case	Number of Terminations	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Passive Product EP3WS15RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	400 ppm/°C	15 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3W22RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	22 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3W15RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	400 ppm/°C	15 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3WS680RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	680 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3W47RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	47 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3WS22RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	22 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3W100RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	100 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3WS510RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	510 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C
TE Connectivity Passive Product EP3WS330RJ	Wirewound	Axial	5 %	Flame Retardant Coating Pulse Withstanding Safety	300 ppm/°C	330 Ohms	Axial	2	0.689 in	6.5 mm	17.5 mm	0.256 in	3 W	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.12

Description

General part information

EP3W Series

510 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
