RAY-101-10.0(100)

Unknown

TE Connectivity Aerospace, Defense and Marine

GROUND BRAID TUBE 0.39"DIAX16.4'

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

GROUND BRAID TUBE 0.39"DIAX16.4'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

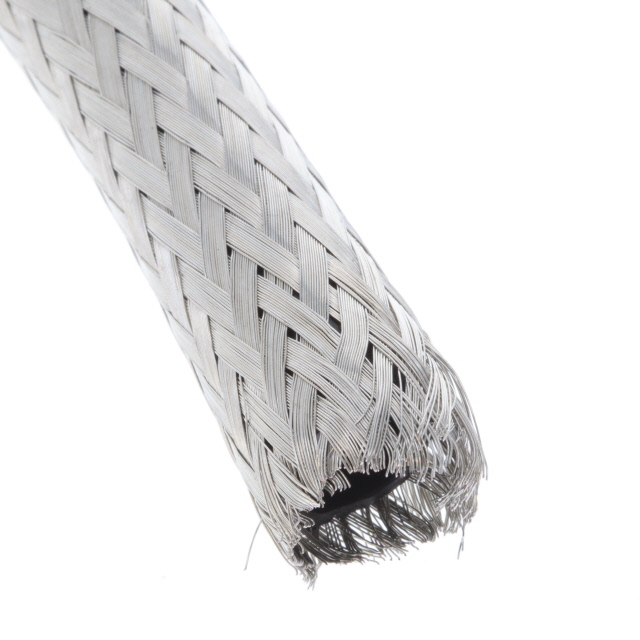

Tubular Ground Braid 0.394" (10.00mm) - Inner Dia X 16.4' (5.00m) 36 AWG

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	RAY-101-10.0(100)	RAY-101 Series

Length	50 m, 5 m, 25 m, 1 m	1 - 50 m
Length	164 ft, 16.4 ', 82 ft, 3.3 ft	3.3 - 164 ft
Length	-	Enter Number of Meters in Order Quantity
Material	Copper, Tin Plated	Copper, Tin Plated
Number of Carriers	36	24 - 36
Size, Supplied	-	7.5 mm
Size, Supplied [diameter]	10 mm	4 - 12.5 mm
Size, Supplied [diameter]	0.394 in	0.157 - 0.492 in
Spool Size	-	328.1 '
Spool Size	-	100 m
Spool Size	-	1312.33 ft
Spool Size	-	400 m
Type	Tubular	Tubular
Wire Gauge - Ends	36 AWG	36 AWG

GROUND BRAID TUBE 0.49"DIA METER

Part	Length	Type	Length	Length	Number of Carriers	Material	Wire Gauge - Ends	Size, Supplied [diameter]	Size, Supplied [diameter]	Spool Size	Spool Size	Spool Size [custom]	Spool Size [custom]	Size, Supplied
TE Connectivity Aerospace, Defense and Marine RAY-101-12.5(100)	Enter Number of Meters in Order Quantity	Tubular	1 m, 5 m, 25 m, 50 m	3.3 ft, 16.4 ', 82 ft, 164 ft	36	Copper, Tin Plated	36 AWG	12.5 mm	0.492 in	328.1 '	100 m
TE Connectivity Aerospace, Defense and Marine RAY-101-10.0(100)		Tubular	1 m, 5 m, 25 m, 50 m	3.3 ft, 16.4 ', 82 ft, 164 ft	36	Copper, Tin Plated	36 AWG	10 mm	0.394 in
TE Connectivity Aerospace, Defense and Marine RAY-101-12.5(10)		Tubular			36	Copper, Tin Plated	36 AWG	12.5 mm	0.492 in
TE Connectivity Aerospace, Defense and Marine RAY-101-4.0(100)		Tubular	1 m, 50 m	3.3 ft, 164 ft	24	Copper, Tin Plated	36 AWG	4 mm	0.157 in
TE Connectivity Aerospace, Defense and Marine RAY-101-7.5(100)	Enter Number of Meters in Order Quantity	Tubular	1 m, 5 m, 25 m, 50 m	3.3 ft, 16.4 ', 82 ft, 164 ft	24	Copper, Tin Plated	36 AWG		0.295 in			1312.33 ft	400 m	7.5 mm
TE Connectivity Aerospace, Defense and Marine RAY-101-6.0(100)		Tubular	1 m, 5 m, 25 m, 50 m	3.3 ft, 16.4 ', 82 ft, 164 ft	24	Copper, Tin Plated	36 AWG	6 mm	0.236 in
