MS3127E14-19S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3127E14-19S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3127E14-19S | MS3127E14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 19 | 12 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 14-12 |
| Shell Size - Insert [Max] [custom] | 19 | 19 |
| Shell Size - Insert [Min] [custom] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 166.29 | |
| 10 | $ 154.09 | |||
| 25 | $ 148.55 | |||
| 50 | $ 147.44 | |||
MS3127E14 Series
RECEPT
| Part | Current Rating (Amps) | Mounting Feature | Contact Finish - Mating | Grade | Voltage Rating | Primary Material | Color | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Applications | Number of Positions | Ingress Protection | Fastening Type | Connector Type | Contact Material | Shielding | Shell Material | Orientation | Qualification | Shell Finish | Termination | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3127E14-19S(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3127E14-19S | 7.5 A | Flange | Gold | Military | 600 VAC | Metal | Olive Drab | Neoprene | -55 °C | 125 °C | 19 | 14 | Aerospace, Industrial, Instrumentation, Mass Transit, Military | 19 | Environment Resistant | Bayonet Lock | Receptacle, Female Sockets | Copper Alloy | Unshielded | Aluminum | N | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Crimp | |
Amphenol Industrial Operations MS3127E14-12S | Flange | Gold | Military | Metal | Olive Drab | Neoprene | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | 12 | Environment Resistant | Bayonet Lock | Receptacle, Female Sockets | Copper Alloy | Unshielded | Aluminum | N | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Crimp | 14-12 | ||||
Amphenol Industrial Operations MS3127E14-5P(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3127E14-12P(LC) |
Description
General part information
MS3127E14 Series

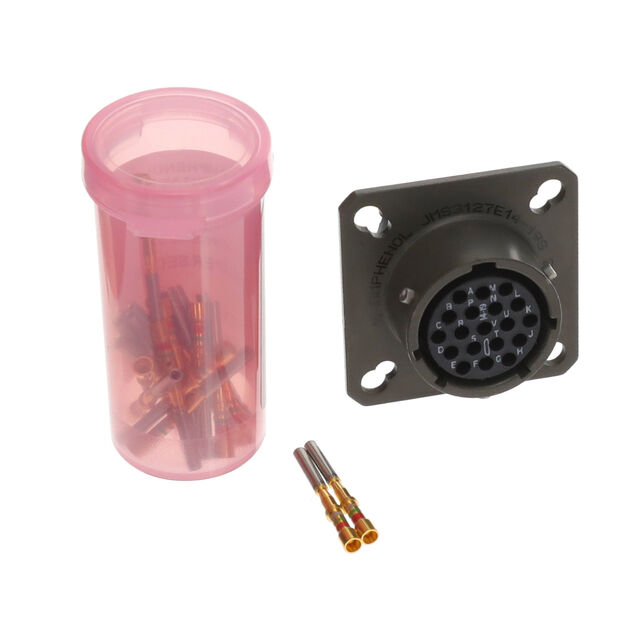

19 Position Circular Connector Receptacle, Female Sockets Crimp
