Specification	GMA300F-12

Applications	ITE (Commercial), Medical
Approval Agency	cURus, CE
Current - Output 1	25 A
Efficiency	92 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	300 W
Size / Dimension Height	1.31 in
Size / Dimension Length	4 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

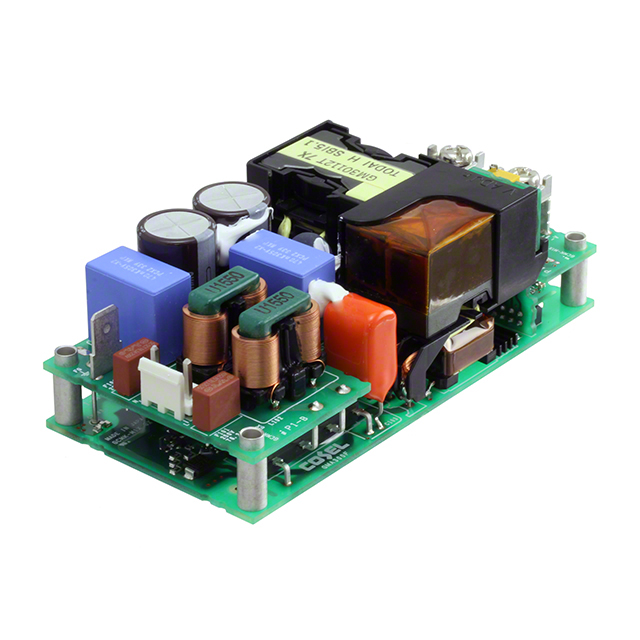

GMA300F Series

Part	Applications	Type	Features	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Efficiency	Number of Outputs	Mounting Type	Current - Output 1	Operating Temperature (Max)	Operating Temperature (Min)
Cosel USA, Inc. GMA300F-56-C	ITE (Commercial) Medical	Conformal Coated Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	56 V	4000 Vpk	302 W	93 %	1	Chassis Mount	5.4 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-12-J3	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	12 V	4000 Vpk	300 W	92 %	1	Chassis Mount	25 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-56-J1	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	56 V	4000 Vpk	302 W	93 %	1	Chassis Mount	5.4 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-48-J1	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	48 V	4000 Vpk	302 W	93 %	1	Chassis Mount	6.3 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-56-J3	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	56 V	4000 Vpk	302 W	93 %	1	Chassis Mount	5.4 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-56	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	56 V	4000 Vpk	302 W	93 %	1	Chassis Mount	5.4 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-48-C	ITE (Commercial) Medical	Conformal Coated Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	48 V	4000 Vpk	302 W	93 %	1	Chassis Mount	6.3 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-48-I2	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	48 V	4000 Vpk	302 W	93 %	1	Chassis Mount	6.3 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-24-I2	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus DEMKO	4 in	1.44 in	2 in	24 V	4000 Vpk	300 W	93 %	1	Chassis Mount	12.5 A	70 °C	-20 °C
Cosel USA, Inc. GMA300F-24-C	ITE (Commercial) Medical	Conformal Coated Open Frame	Adjustable Output PFC Universal Input	85 VAC	264 V	CE cURus D-Mark	4 in	1.44 in	2 in	24 V	4000 Vpk	300 W	93 %	1	Chassis Mount	12.5 A	70 °C	-20 °C
