2P02-0200-ES

Active

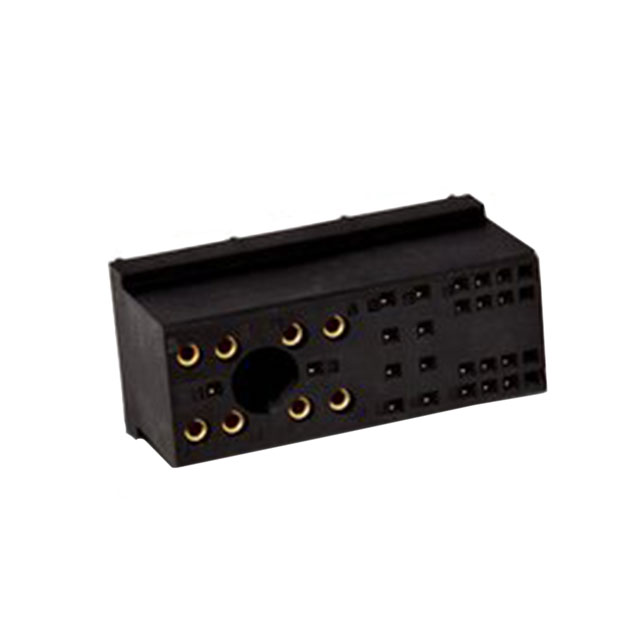

CONN RCPT ATCA 34POS PCB

Search across all available documentation for this part.

Active

CONN RCPT ATCA 34POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	2P02-0200-ES

Connector Style	AdvancedTCA®
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	8
Contact Layout, Typical [custom]	26
Features	Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	30
Termination	Press-Fit

CONN RCPT ATCA 34POS PCB

Part	Features	Material Flammability Rating	Contact Finish	Connector Usage	Connector Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions Loaded	Connector Style
3M 2P02-0200-ES	Mating Guide	UL94 V-0	Gold	Daughtercard	Receptacle, Female Sockets	34	Through Hole	0.76 Ám	30 Áin	Press-Fit	8	26	30	AdvancedTCA®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

34 Connector Receptacle, Female Sockets Through Hole AdvancedTCA®
