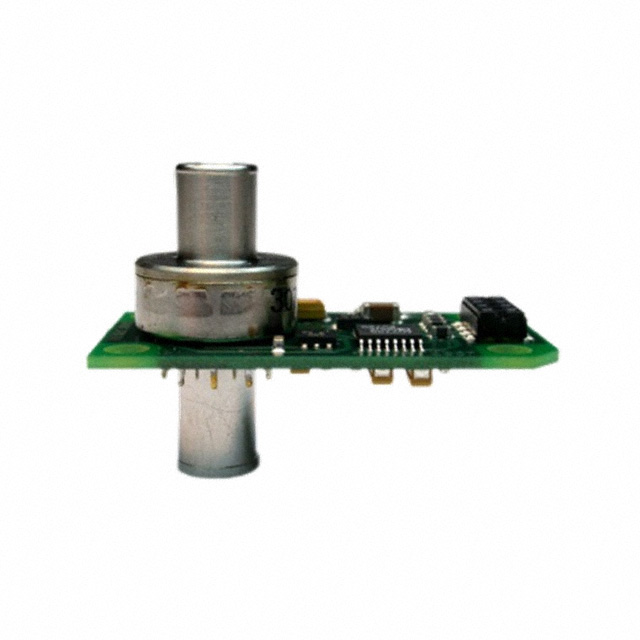

IPT0001D33R

Active

Honeywell Aerospace

SENSOR 1PSID 0.26" 24BIT

Search across all available documentation for this part.

Active

Honeywell Aerospace

SENSOR 1PSID 0.26" 24BIT

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 1PSID 0.26" 24BIT

Part	Maximum Pressure	Maximum Pressure	Termination Style	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Output	Operating Pressure	Operating Pressure	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Port Size	Port Size	Port Size	Applications	Pressure Type	Accuracy
Honeywell Aerospace IPT0001D33R	20.68 kPa	3 PSI	Connector	Module	4 V	12 V	Temperature Compensated	24 b	6.89 kPa	1 PSI	SPI	85 °C	-40 °C	Barbless	Male, Tube	6.71 mm	0.26 in	Board Mount	Differential	0.1 %
Honeywell Aerospace IPT0001G33R	20.68 kPa	3 PSI	Connector	Module	4 V	12 V	Temperature Compensated	24 b	6.89 kPa	1 PSI	SPI	85 °C	-40 °C	Barbless	Male, Tube	6.71 mm	0.26 in	Board Mount	Vented Gauge	0.1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.26" (6.71mm) Tube 24 b Module
