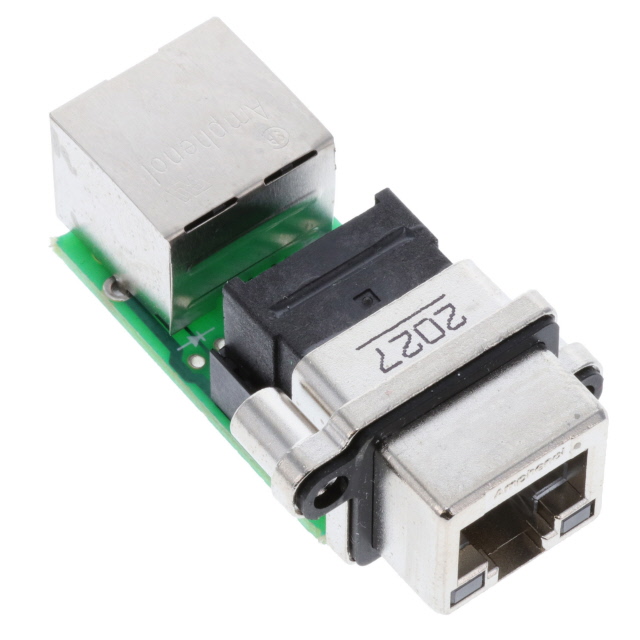

Specification	MRJ5780M1

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Convert From (Adapter End)	8p8c (RJ45), Jack
Convert To (Adapter End)	Jack, 8p8c (RJ45)
Finish	Nickel Plated
Housing Material	PC, Polycarbonate
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Flange (2 Hole), Panel Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shell Material	Zinc Alloy
Shielding	Shielded
Type	Coupler

MRJ578 Series

Part	Housing Material	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish	Contact Finish Thickness	Finish	Shell Material	Shielding	Type	Convert To (Adapter End)	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Convert From (Adapter End)
Amphenol ICC (Commercial Products) MRJ5785M1	PC Polycarbonate	Phosphor Bronze	-40 °C	105 °C	Gold	50 µin	Nickel Plated	Zinc Alloy	Shielded	Coupler	8p8c (RJ45) Jack	Flange (2 Hole) Panel Mount	Dust Tight Waterproof	IP67	8p8c (RJ45) Jack
Amphenol ICC (Commercial Products) MRJ578401	PC Polycarbonate	Phosphor Bronze	-40 °C	105 °C	Gold	50 µin	Nickel Plated	Zinc Alloy	Shielded	Coupler	8p8c (RJ45) Jack	Flange (2 Hole) Panel Mount	Dust Tight Waterproof	IP67	8p8c (RJ45) Jack
Amphenol ICC (Commercial Products) MRJ5780M1	PC Polycarbonate	Phosphor Bronze	-40 °C	105 °C	Gold	50 µin	Nickel Plated	Zinc Alloy	Shielded	Coupler	8p8c (RJ45) Jack	Flange (2 Hole) Panel Mount	Dust Tight Waterproof	IP67	8p8c (RJ45) Jack
Amphenol ICC (Commercial Products) MRJ578501	PC Polycarbonate	Phosphor Bronze	-40 °C	105 °C	Gold	50 µin	Nickel Plated	Zinc Alloy	Shielded	Coupler	8p8c (RJ45) Jack	Flange (2 Hole) Panel Mount	Dust Tight Waterproof	IP67	8p8c (RJ45) Jack
