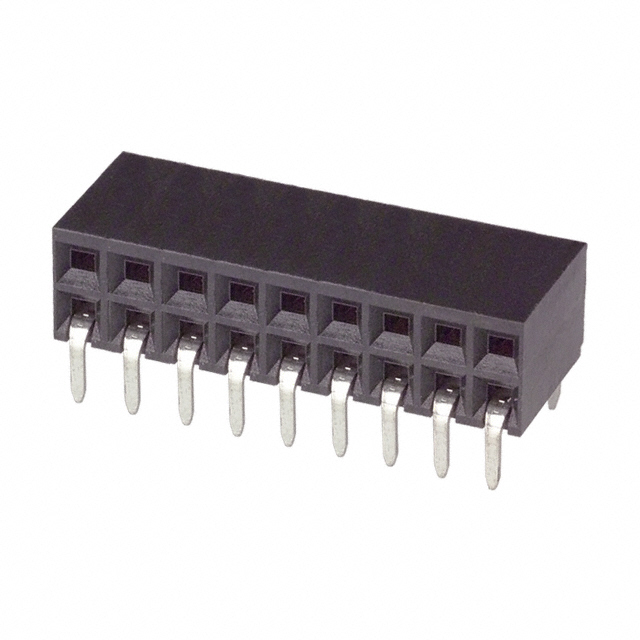

146140-8

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 18POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 18POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	146140-8

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.05 mm
Insulation Height	0.238 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Mounting Type	Connector Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Insulation Material	Contact Finish - Post	Insulation Color	Fastening Type	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity Raychem Cable Protection 146140-4	6.05 mm	0.238 in	-55 °C	125 °C	2.54 mm	0.1 in	2	UL94 V-0	0.1 in	2.54 mm	Female Socket	Gold	Phosphor Bronze	2.92 mm	0.115 in	Through Hole Right Angle	Receptacle	Solder	10 çin	0.25 çm	10	Square	Polyester Glass Filled	Tin-Lead	Black	Push-Pull	2 A	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 1-146140-4	6.05 mm	0.238 in	-55 °C	125 °C	2.54 mm	0.1 in	2	UL94 V-0	0.1 in	2.54 mm	Female Socket	Gold	Phosphor Bronze	2.92 mm	0.115 in	Through Hole Right Angle	Receptacle	Solder	10 çin	0.25 çm	30	Square	Polyester Glass Filled	Tin-Lead	Black	Push-Pull	2 A	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 146140-8	6.05 mm	0.238 in	-55 °C	125 °C	2.54 mm	0.1 in	2	UL94 V-0	0.1 in	2.54 mm	Female Socket	Gold	Phosphor Bronze	2.92 mm	0.115 in	Through Hole Right Angle	Receptacle	Solder	10 çin	0.25 çm	18	Square	Polyester Glass Filled	Tin-Lead	Black	Push-Pull	2 A	All	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
