TSS4B04G D2G

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 400V 4A TS4B

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 400V 4A TS4B

Technical Specifications

Parameters and characteristics for this part

Specification	TSS4B04G D2G

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

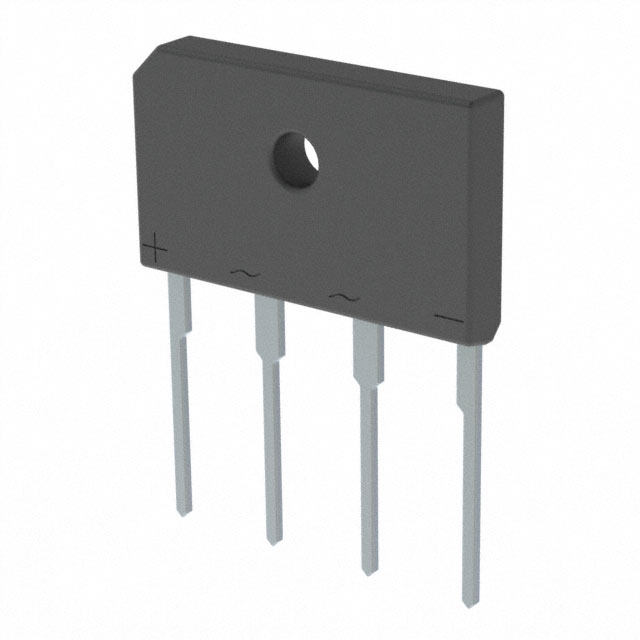

Package / Case	4-SIP, TS-4B
Supplier Device Package	TS4B
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Supplier Device Package
Taiwan Semiconductor Corporation TSS4B04G D2G	4 A	400 V	4-SIP TS-4B	-55 °C	150 °C	Single Phase	1.3 V	5 µA	Through Hole	Standard	TS4B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole TS4B
