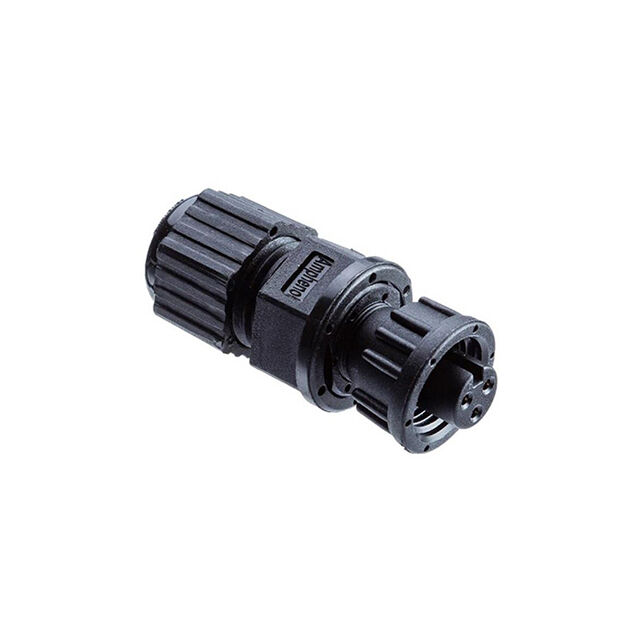

AU-04BFFA-SL7001

Active

Amphenol LTW

MINI

Search across all available documentation for this part.

Active

Amphenol LTW

MINI

Technical Specifications

Parameters and characteristics for this part

Specification	AU-04BFFA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Material	Nickel
Shell Size - Insert	A
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Contact Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Backshell Material, Plating	Insert Material	Shell Material	Color	Orientation	Current Rating (Amps)	Voltage Rating	Number of Positions	Primary Material	Ingress Protection	Mounting Type	Connector Type	Features
Amphenol LTW AU-04BFFA-SL7001	Gold	4.5 mm 6.5 mm	0.177 in 0.256 in	UL94 V-0	Copper Alloy	A	-40 °C	105 ░C	Unshielded	Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Nickel	Black	A	2 A	250 VAC	4	Metal	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Female Sockets Plug	Backshell Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.85

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
