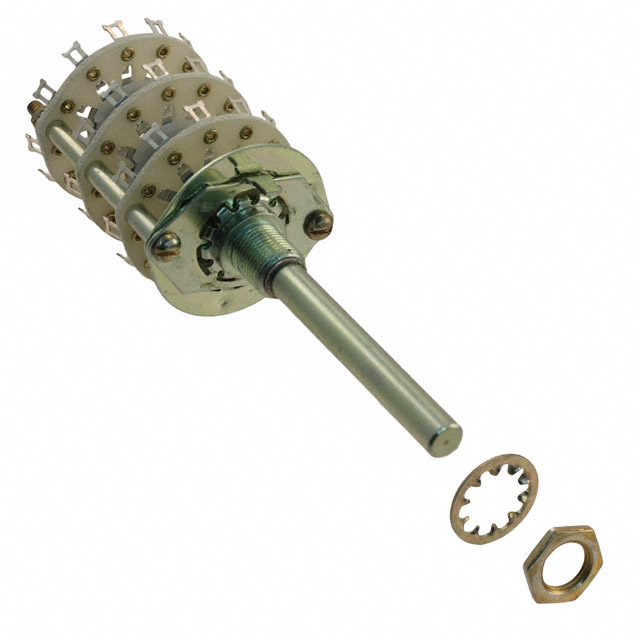

D4G0311N

Active

ELECTROSWITCH

SWITCH ROTARY 2-11POS 500MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-11POS 500MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D4G0311N

Actuator Length [x]	47.63 mm
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	SP11T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 1.5 A
Depth Behind Panel [z]	42.82 mm
Index Stops	Adjustable
Number of Decks	3
Number of Poles per Deck	1
Number of Positions [Max]	11
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Angle of Throw	Current Rating (Amps)	Actuator Type	Actuator Type [diameter]	Actuator Length [x]	Index Stops	Contact Timing	Number of Positions [Max]	Number of Positions [Min]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit per Deck [custom]	Contact Material	Depth Behind Panel [z]	Number of Poles per Deck	Voltage Rating - DC	Contact Finish	Termination Style	Number of Decks
ELECTROSWITCH D4G0311S	30 °	1.5 A 500 mA	Round	6.35 mm	47.63 mm	Adjustable	Shorting	11	2	115 V	9.78 mm	SP11T	Brass	42.82 mm	1	28 V	Silver	Solder Lug	3
ELECTROSWITCH D4G0311N	30 °	1.5 A 500 mA	Round	6.35 mm	47.63 mm	Adjustable	Non-Shorting	11	2	115 V	9.78 mm	SP11T	Brass	42.82 mm	1	28 V	Silver	Solder Lug	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 11 Position SP11T 500mA (AC), 1.5A (DC) 115 VAC Panel Mount
