LDD-SMHTM5602RISUG

Active

Lumex Opto/Components Inc.

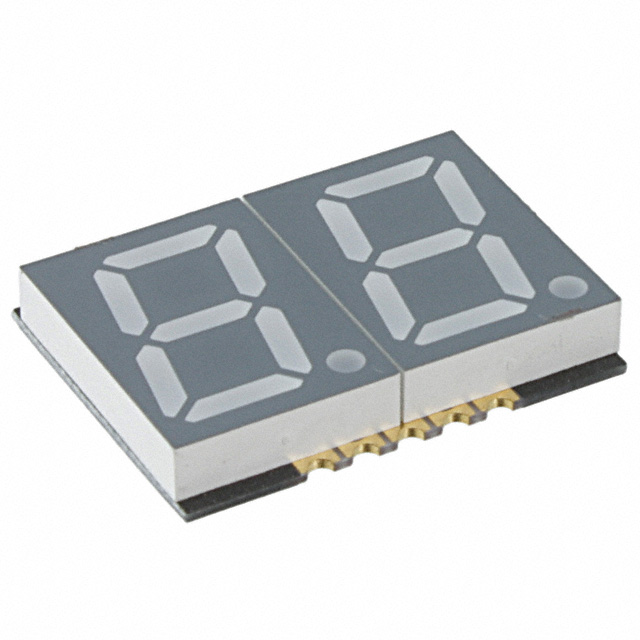

DISPLAY 7SEG 0.56" DBL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

LDD-SMHTM5602RISUG

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.56" DBL GRN 10SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-SMHTM5602RISUG

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	4.5 mcd
Number of Characters	2
Package / Case	10-SMD, No Lead
Power Dissipation (Max)	65 mW
Size / Dimension [x]	0.669 "
Size / Dimension [x]	17 mm
Size / Dimension [y]	0.988 "
Size / Dimension [y]	25.1 mm
Size / Dimension [z]	0.154 in
Size / Dimension [z]	3.9 mm
Voltage - Forward (Vf) (Typ)	2.25 V
Wavelength - Peak	568 nm

LDD-SMHTM5602 Series

DISPLAY 7SEG 0.56" DBL GRN 10SMD

Part	Voltage - Forward (Vf) (Typ)	Display Type	Millicandela Rating	Current - Test	Wavelength - Peak	Color	Power Dissipation (Max)	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case
Lumex Opto/Components Inc. LDD-SMHTM5602RISUG	2.25 V	7-Segment	4.5 mcd	20 mA	568 nm	Green	65 mW	Common Anode	0.56 in	14.22 mm	2	0.154 in	0.669 "	0.988 "	25.1 mm	3.9 mm	17 mm	10-SMD, No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDD-SMHTM5602 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.25V 20mA 0.669" H x 0.988" W x 0.154" D (17.00mm x 25.10mm x 3.90mm) 10-SMD, No Lead

Documents

Technical documentation and resources

No documents available
