928343-4

Active

TE Connectivity AMP Connectors

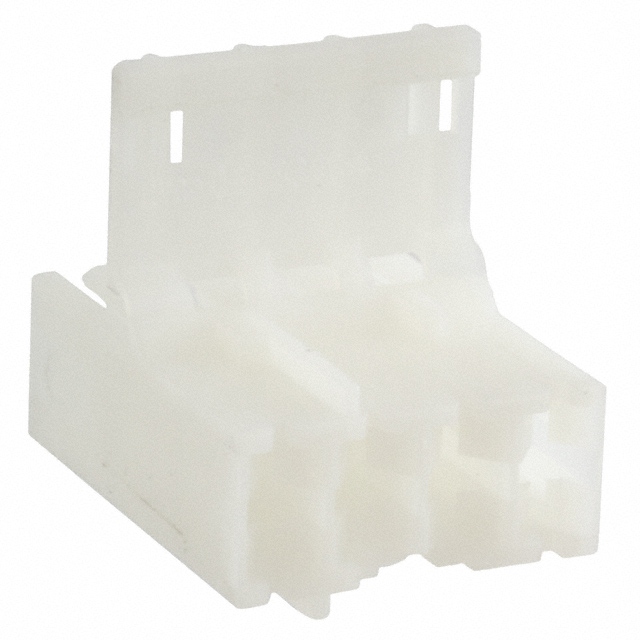

CONN RCPT HSG 4POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

928343-4

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 4POS 5.00MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.56
		25	$ 0.54
		50	$ 0.53
		100	$ 0.46
		250	$ 0.44
		500	$ 0.43

Description

General part information

928343 Series

4 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	928343-4	928343 Series

Color	Natural	Gray, Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	2 - 12
Number of Rows	1	1
Operating Temperature [Max]	110 °C	105 - 110 ░C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

928343 Series

CONN RCPT HSG 3POS 5.00MM

Part	Mounting Type	Number of Rows	Color	Contact Termination	Note	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
TE Connectivity AMP Connectors 3-928343-3	Free Hanging (In-Line)	1	Gray	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C
TE Connectivity AMP Connectors 2-928343-6	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included		Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Male Pin			6
TE Connectivity AMP Connectors 2-928343-5	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket
TE Connectivity AMP Connectors 928343-6	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	6
TE Connectivity AMP Connectors 2-928343-8	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket			8
TE Connectivity AMP Connectors 928343-2	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	2
TE Connectivity AMP Connectors 1-928343-2	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C	12
TE Connectivity AMP Connectors 1-928343-1	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C	11
TE Connectivity AMP Connectors 928343-8	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	8
TE Connectivity AMP Connectors 928343-5	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C
