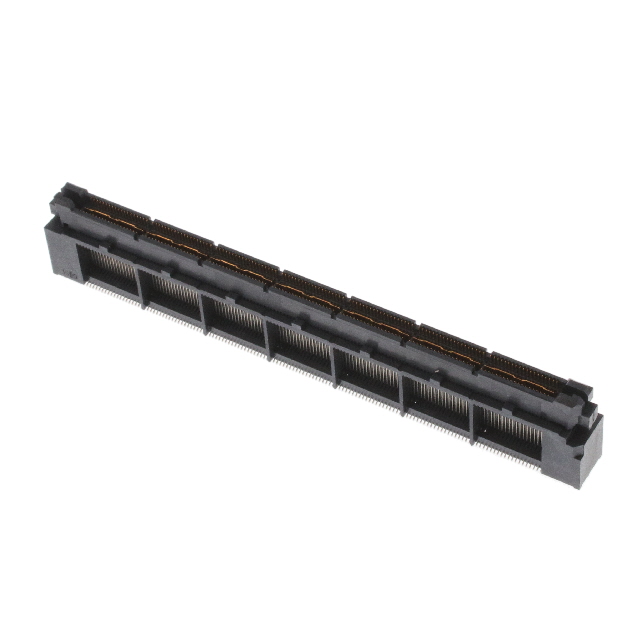

5767025-7

5767025-7

Active
TE Connectivity AMP Connectors

MICTOR .707 PLUG ASSY, 266 POS

Find alt

Description

General part information

5767025 Series

PCB Mount Header, Vertical, Board-to-Board, 266 Position, .64 mm [.025 in] Centerline, Gold (Au), Surface Mount, Signal, Black, Box / Tube

Technical Specifications

Parameters and characteristics for this part

Specification5767025-7
Connector TypePlug, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness30 µin
FeaturesGround Bus (Plane), Board Guide
Height Above Board0.699 in
Mated Stacking Height Options27mm, 17.96mm
Mounting TypeSurface Mount
Number of Positions266
Number of Rows2
Pitch0.025 in
