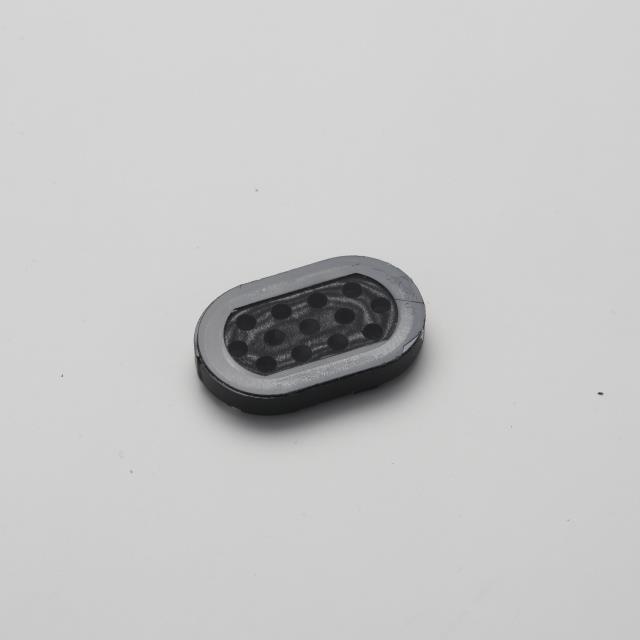

SCM-2415L4.5-8N1R

Active

East Electronics

SPEAKER 8OHM 1W 88DB

Search across all available documentation for this part.

Active

East Electronics

SPEAKER 8OHM 1W 88DB

Technical Specifications

Parameters and characteristics for this part

Specification	SCM-2415L4.5-8N1R

Efficiency - dBA	88 dBA
Efficiency - Testing	1W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	750 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	750 Hz
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Impedance	8 Ohms
Material - Cone	Polyethylene Terephthalate (PET)
Power - Max [Max]	1.2 W
Power - Rated	1 W
Shape	Oval
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.591 in
Termination	Solder Pads

SPEAKER 8OHM 1W 88DB

Part	Material - Cone	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Efficiency - Type	Termination	Height - Seated (Max) [Max]	Height - Seated (Max)	Efficiency - Testing	Frequency - Self Resonant	Impedance	Shape	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency - dBA	Power - Rated
East Electronics SCM-2415L4.5-8N1R	Polyethylene Terephthalate (PET)	750 Hz	20 kHz	1.2 W	Sound Pressure Level (SPL)	Solder Pads	0.177 "	4.5 mm	1W/100mm	750 Hz	8 Ohms	Oval	15 mm	24 mm	0.591 in	0.945 in	88 dBA	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Speaker 1 W 750 Hz ~ 20 kHz Oval
