AXT430224

Active

Panasonic Electric Works

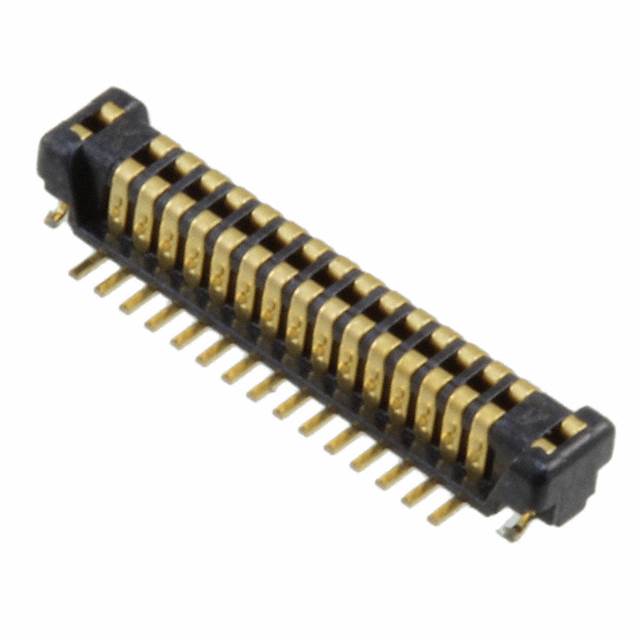

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT430224

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Number of Positions	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Features	Number of Rows
Panasonic Electric Works AXT430364	Header Center Strip Contacts	30	3 mm	Surface Mount	2.23 mm	0.088 "	0.016 in	0.4 mm	Gold	Solder Retention	2
Panasonic Electric Works AXT430314	Header Center Strip Contacts	30	3 mm	Surface Mount	2.23 mm	0.088 "	0.016 in	0.4 mm	Gold	Board Guide Solder Retention	2
Panasonic Electric Works AXT430224	Header Center Strip Contacts	30	1.5 mm 2.5 mm	Surface Mount	1.25 mm	0.049 in	0.016 in	0.4 mm	Gold	Solder Retention	2
