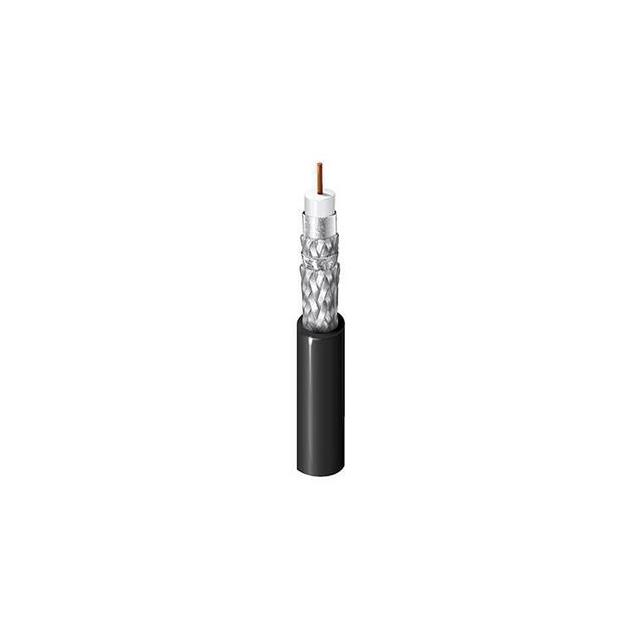

3092T 0105000

Active

Belden Inc.

COAX 18AWG 100 OHM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 18AWG 100 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	3092T 0105000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	4.52 mm
Dielectric Diameter [diameter]	0.178 in
Dielectric Material	Foam Polyethylene (FPE)
Features	Quad Shield, Flame Retardant
Impedance	100 Ohms
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Polyolefin (PO)
Jacket Color	Black
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	82
Wire Gauge	18 AWG

Part	Cable Group	VoP, Velocity of Propagation	Shield Type	Conductor Strand	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Jacket Color	Shield Material	Jacket (Insulation) Material	Conductor Material	Features	Dielectric Material
Belden Inc. 3092T 0105000	RG-6	82	Braid Foil	Solid	Coaxial	7.62 mm	0.3 in	18 AWG	100 Ohms	4.52 mm	0.178 in	100% 60%	Black	Aluminum	Polyolefin (PO)	Copper Coated Steel	Flame Retardant Quad Shield	Foam Polyethylene (FPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.38

General part information

Coaxial Cable 18 AWG RG-6 5000.0' (1524.00m) 100 Ohms
