Technical Specifications

Parameters and characteristics for this part

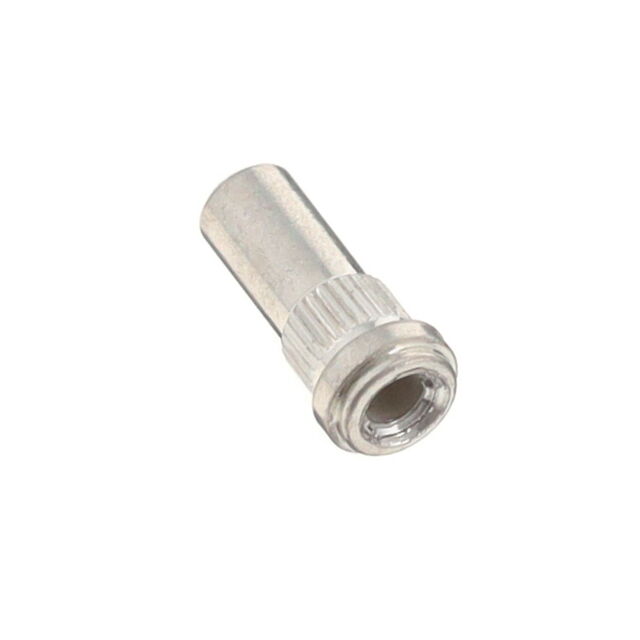

Specification	0359-0-15-01-34-01-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter	2.79 mm
Flange Diameter [diameter]	0.11 in
Length - Overall [x]	6.35 mm
Length - Overall [x]	0.25 in
Mounting Hole Diameter [diameter]	0.09 in
Mounting Hole Diameter [diameter]	2.29 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.19 in
Socket Depth	4.83 mm
Tail Type	No Tail
Termination	Knurled, Press-Fit

0359-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Material	Flange Diameter [diameter]	Flange Diameter
Mill-Max Manufacturing Corp. 0359-0-15-15-34-14-10-0	6.35 mm	0.25 in	10 Áin	0.25 Ám	Knurled Press-Fit	Gold	0.09 in	2.29 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	-55 °C	125 °C	0.19 in	4.83 mm	1.63 mm	0.064 in	No Tail	Beryllium Copper	0.11 in	2.79 mm
Mill-Max Manufacturing Corp. 0359-0-15-01-34-14-10-0	6.35 mm	0.25 in	10 Áin	0.25 Ám	Knurled Press-Fit	Gold	0.09 in	2.29 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	-55 °C	125 °C	0.19 in	4.83 mm	1.63 mm	0.064 in	No Tail	Beryllium Copper	0.11 in	2.79 mm
Mill-Max Manufacturing Corp. 0359-0-15-15-34-27-10-0	6.35 mm	0.25 in	30 Áin	0.76 Ám	Knurled Press-Fit	Gold	0.09 in	2.29 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	-55 °C	125 °C	0.19 in	4.83 mm	1.63 mm	0.064 in	No Tail	Beryllium Copper	0.11 in	2.79 mm
Mill-Max Manufacturing Corp. 0359-0-15-01-34-01-10-0	6.35 mm	0.25 in	200 Áin	5.08 Ám	Knurled Press-Fit	Tin-Lead	0.09 in	2.29 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	-55 °C	125 °C	0.19 in	4.83 mm	1.63 mm	0.064 in	No Tail	Beryllium Copper	0.11 in	2.79 mm
Mill-Max Manufacturing Corp. 0359-0-15-80-34-80-10-0	6.35 mm	0.25 in	200 Áin	5.08 Ám	Knurled Press-Fit	Tin	0.09 in	2.29 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	-55 °C	125 °C	0.19 in	4.83 mm	1.63 mm	0.064 in	No Tail	Beryllium Copper	0.11 in	2.79 mm
