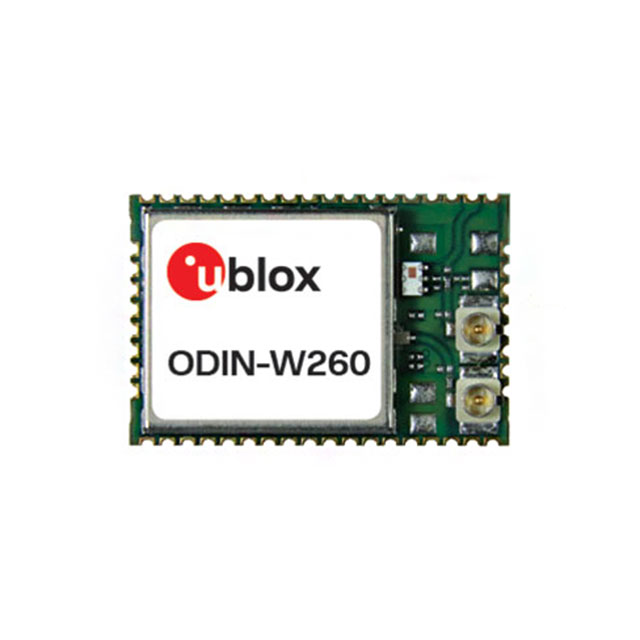

ODIN-W260-05B

Active

u-blox

RF TXRX MOD BT WIFIU.FL SMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD BT WIFIU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Data Rate	Antenna Type	Serial Interfaces	Package / Case	RF Family/Standard	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Protocol	Power - Output	Mounting Type	Frequency [Min]	Frequency [Max]	Supplied Contents	Frequency	For Use With/Related Products	Type	Utilized IC / Part	Memory Size
u-blox ODIN-W260-04B	130 Mbps	Antenna Not Included U.FL	ADC GPIO I2C SPI UART	52-SMD Module	Bluetooth WiFi	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	140 mA	3.6 V	3 V	-95 dBm	802.11a/b/g/n Bluetooth v4.0 +EDR	18 dBm	Surface Mount	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz
u-blox EVK-ODIN-W260																			Board(s) Cable(s)	2.4 GHz 5 GHz	ODIN-W260	802.11 a/b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver
u-blox ODIN-W260-05B	130 Mbps	Antenna Not Included U.FL	ADC GPIO I2C SPI UART	52-SMD Module	Bluetooth WiFi	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	140 mA	3.6 V	3 V	-95 dBm	802.11a/b/g/n Bluetooth v4.0 +EDR	18 dBm	Surface Mount	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz					STM32 TI WL8	2 MB 256 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 37.93

General part information

Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.0 +EDR Transceiver Module 2.4GHz ~ 2.5GHz, 5.18GHz ~ 5.825GHz Antenna Not Included, U.FL Surface Mount
