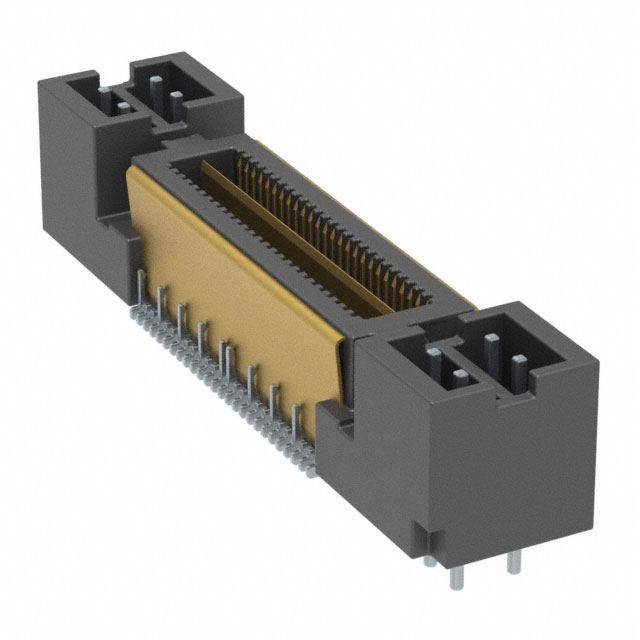

QMSS-016-06.75-L-D-DP-PC8

Active

Samtec Inc.

CONN DIFF ARRAY PLG 32P SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMSS-016-06.75-L-D-DP-PC8

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Shielded, Power Pins (8), Board Guide, Ground Bus (Plane)
Height Above Board	0.265 in
Height Above Board	6.73 mm
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMSS-016 Series

Part	Mounting Type	Features	Mated Stacking Heights	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Height Above Board	Height Above Board
Samtec Inc. QMSS-016-01-L-D-DP-EM2	Surface Mount	Board Guide Ground Bus (Plane) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-06.75-L-D-DP-PC4	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.25 in	6.35 mm
Samtec Inc. QMSS-016-06.75-L-D-DP-PT4	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-01-H-D-DP-EM2-PC4	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	11 mm	2	30 Áin	0.76 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-06.75-H-D-DP-A	Surface Mount	Board Guide Ground Bus (Plane) Shielded	11 mm	2	30 Áin	0.76 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-06.75-L-D-DP-A-TR	Surface Mount	Board Guide Ground Bus (Plane) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-06.75-L-D-DP	Surface Mount	Board Guide Ground Bus (Plane) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm
Samtec Inc. QMSS-016-06.75-L-D-DP-PC8	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	11 mm	2	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Differential Pair Array Male	0.265 in	6.73 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	56	$ 15.57

Description

General part information

QMSS-016 Series

32 Position Connector Differential Pair Array, Male Surface Mount Gold
