EB_NN01-104

Obsolete

Ignion

EB_SLIM REACH XTEND - 104

Search across all available documentation for this part.

Obsolete

Ignion

EB_SLIM REACH XTEND - 104

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EB_NN01-104	EB_NN01 Series

For Use With/Related Products	FR05-S1-N-0-104	FR01-B3-V-0-054, FR05-S1-N-0-104
Frequency [Max]	2.5 GHz	2.5 - 928 MHz
Frequency [Min]	2.4 GHz	2.4 - 902 MHz
Supplied Contents	Board(s)	Board(s)
Type	Antenna	Antenna

EB_EZCONNECT - 105 (915 MHZ)

Part	Frequency [Min]	Frequency [Max]	Type	Supplied Contents	For Use With/Related Products
Ignion EB_NN01-105A	902 MHz	928 MHz	Antenna	Board(s)
Ignion EB_NN01-054	180 MHz	220 MHz	Antenna	Board(s)	FR01-B3-V-0-054
Ignion EB_NN01-104	2.4 GHz	2.5 GHz	Antenna	Board(s)	FR05-S1-N-0-104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

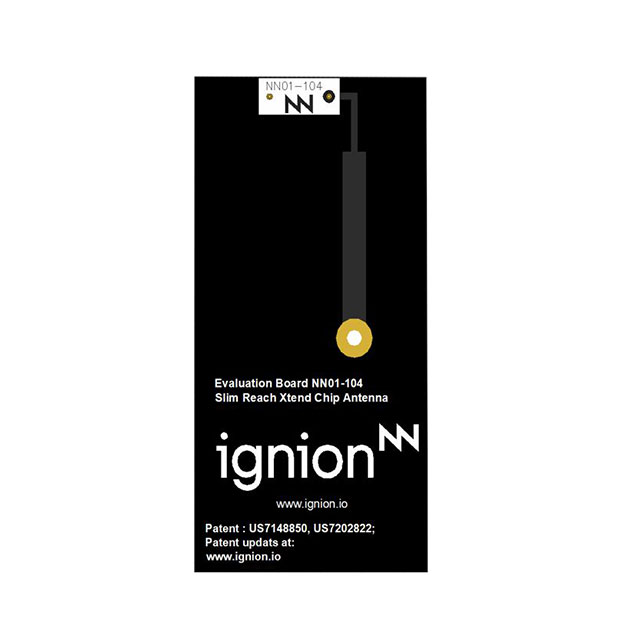

FR05-S1-N-0-104 Slim Reach Xtend™ Antenna 2.4GHz ~ 2.5GHz Evaluation Board

Technical documentation and resources

No documents available
