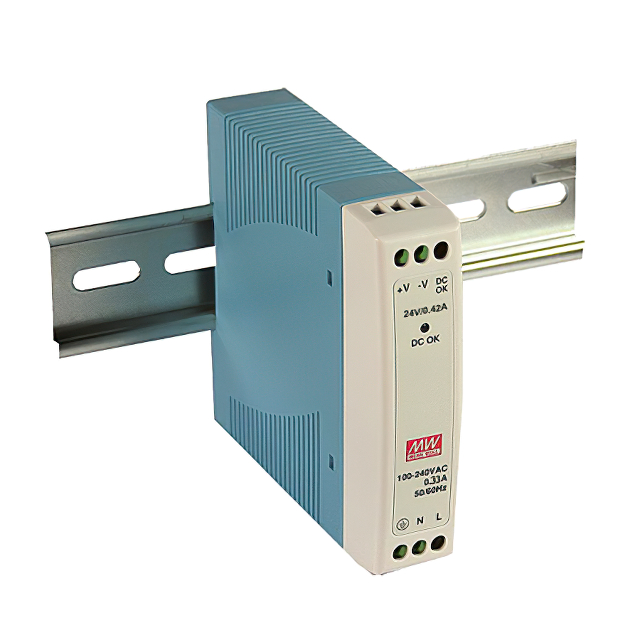

BB-MDR-10-24

Obsolete

Advantech Corp

AC/DC DIN RAIL SUPPLY 24V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BB-MDR-10-24

Obsolete

Advantech Corp

AC/DC DIN RAIL SUPPLY 24V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-MDR-10-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	420 mA
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	84 %
Features	Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	10 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Standard Number	62368-1, 508
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

BB-MDR Series

Part	Approval Agency	Number of Outputs	Input Type	Voltage - Output 1	Applications	Efficiency	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Standard Number	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
Advantech Corp BB-MDR-100-24	CB CE cULus TUVgs	1	AC	24 V	ITE (Commercial)	88 %	Adjustable Output Universal Input	3.54 "	100 mm	2.17 in	55 mm	90 mm	3.94 in	85 VAC	264 VAC	100 W	2 A	-10 °C	60 °C	3000 V
Advantech Corp BB-MDR-40-24	CB CE cULus TUVgs	1	AC	24 V	ITE (Commercial)	88 %	Adjustable Output Universal Input	3.54 "	100 mm	1.57 "	40 mm	90 mm	3.94 in	85 VAC	264 VAC	40 W	1.7 A	-20 °C	70 °C	3000 V
Advantech Corp BB-MDR-20-5	CB CE cULus TUVgs	1	AC	5 V	ITE (Commercial)	76 %	Adjustable Output Universal Input	3.54 "	100 mm	0.89 in	22.5 mm	90 mm	3.94 in	85 VAC	264 VAC	20 W	3 A	-20 °C	70 °C	3000 V
Advantech Corp BB-MDR-10-12	CB CE cULus TUVgs	1	AC or DC	12 V	Industrial ITE (Commercial)	81 %	Universal Input	3.54 "	100 mm	0.89 in	22.5 mm	90 mm	3.94 in	85 VAC	264 VAC	10 W	840 mA	-20 C	70 °C	3000 V	508 62368-1	370 V	120 V
Advantech Corp BB-MDR-10-24		1	AC or DC	24 V	Industrial ITE (Commercial)	84 %	Universal Input	3.54 "	100 mm	0.89 in	22.5 mm	90 mm	3.94 in	85 VAC	264 VAC	10 W	420 mA	-20 °C	70 °C	3000 V	508 62368-1	370 V	120 V
Advantech Corp BB-MDR-40-48		1	AC	48 V	Hazardous Locations Industrial ITE (Commercial)	88 %	Adjustable Output Universal Input	3.54 "	100 mm	1.57 "	40 mm	90 mm	3.94 in	85 VAC	264 VAC	40 W	830 mA	-20 °C	70 °C	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BB-MDR Series

AC/DC DIN RAIL SUPPLY 24V 10W
