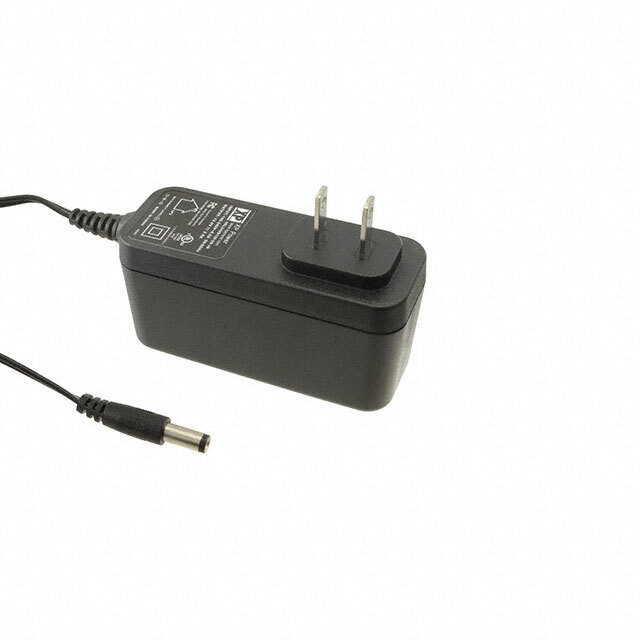

VEL24US120-US-JA

Active

XP Power

AC/DC WALL MOUNT ADAPTER 12V 24W

Search across all available documentation for this part.

Active

XP Power

AC/DC WALL MOUNT ADAPTER 12V 24W

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 12V 24W

Part	Power (Watts)	Weight	Weight	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Cord Length	Cord Length	Form	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output	Current - Output (Max) [Max]	Region Utilized	Efficiency	Standard Number	No Load Power Consumption	Input Type	Approval Agency	Polarization	Voltage - Input [Min]	Voltage - Input [Max]
XP Power VEL24US120-US-JA	24 W	0.188 lb	85.28 g	NEMA 1-15P	Barrel Plug	2.1 mm, 5.5 mm	12 mm	ITE (Commercial)	1.5 m	59 in	Wall Mount (Class II)	90 mm	1.87 "	47.5 mm	1.34 in	34 mm	3.54 in	12 V	2 A	North America	CoC Tier 2, Level VI	62368-1	100 mW	Fixed Blade	CB, TUV, UL	Positive Center	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 24 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
