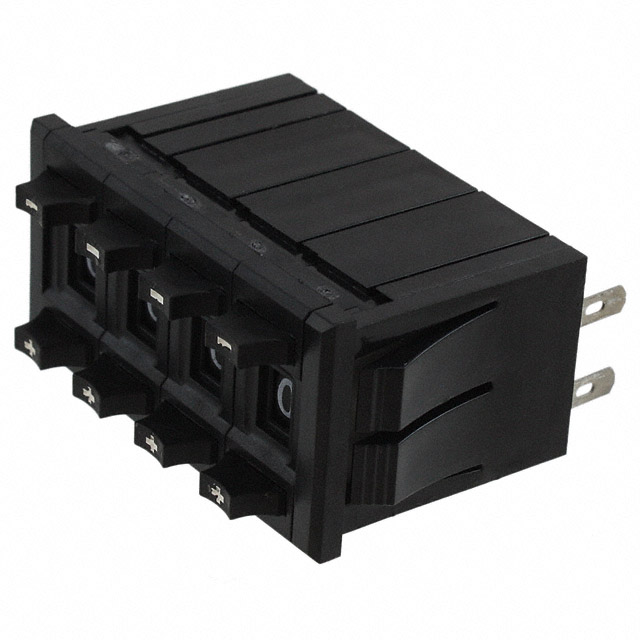

3684S-1-104L
ActiveBourns Inc.
VALUE DISPLAY POT 100K 2W PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3684S-1-104L
ActiveBourns Inc.
VALUE DISPLAY POT 100K 2W PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3684S-1-104L |
|---|---|
| Adjustment Type | Push Button |
| Number of Characters | 4 |
| Power (Watts) | 2 W |
| Resistance | 100 kOhms |
| Size / Dimension [x] | 1.87 " |
| Size / Dimension [x] | 47.5 mm |
| Size / Dimension [y] | 23.62 mm |
| Size / Dimension [y] | 0.93 in |
| Size / Dimension [z] | 26.67 mm |
| Size / Dimension [z] | 1.05 " |
| Termination Style | Solder Lug |
| Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 139.92 | |
| 10 | $ 125.92 | |||
| 25 | $ 108.43 | |||
| 50 | $ 101.44 | |||
| 100 | $ 94.44 | |||
Description
General part information
3684S Series
100 kOhms 2 W 4.0 Character Panel Mount Value Display Potentiometer
