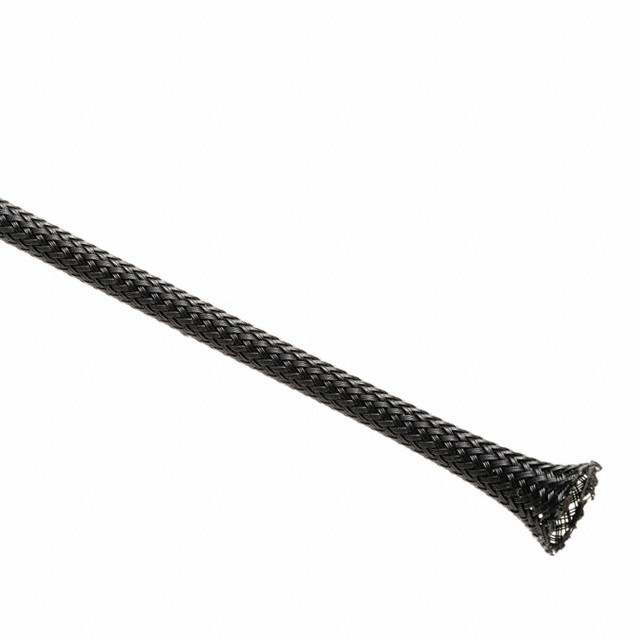

CCP0.13BK1000

Active

Techflex

EXPAND SLEEVING 1/8"X1000' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1/8"X1000' BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCP0.13BK1000	CCP0 Series

Abrasion Protection	Abrasion and Cut Resistant, Fray Resistant	Abrasion and Cut Resistant, Fray Resistant
Color	Black	Black
Diameter - Inside, Expanded [diameter]	6.35 mm	6.35 mm
Diameter - Inside, Expanded [diameter]	0.25 in	0.25 in
Diameter - Inside, Non-Expanded [diameter]	0.125 in	0.125 - 0.75 in
Diameter - Inside, Non-Expanded [diameter]	3.18 mm	3.18 - 19.05 mm
Features	Clean Cut	Clean Cut
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	22.86 m
Length	-	75 ft
Material	Polyethylene Terephthalate (PET), Halogen Free	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-70 °C	-70 °C
Type	Sleeve	Sleeve
Type Attributes	Expandable	Expandable
Wall Thickness	0.024 in	0.024 in
Wall Thickness	0.61 mm	0.61 mm

EXPAND SLEEVING 1/8"X1000' BLK

Part	Features	Type	Material	Material Flammability Rating	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Length	Length	Wall Thickness	Wall Thickness	Type Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Length [x]	Length [x]
Techflex CCP0.13BK1000	Clean Cut	Sleeve	Polyethylene Terephthalate (PET), Halogen Free	UL94 V-0	Black	6.35 mm	0.25 in	1000 ft	304.8 m	0.024 in	0.61 mm	Expandable	125 °C	-70 °C	0.125 in	3.18 mm	Abrasion and Cut Resistant, Fray Resistant
Techflex CCP0.75BK75	Clean Cut	Sleeve	Polyethylene Terephthalate (PET), Halogen Free	UL94 V-0	Black					0.024 in	0.61 mm	Expandable	125 °C	-70 °C	0.75 in	19.05 mm	Abrasion and Cut Resistant, Fray Resistant	22.86 m	75 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 1000' (304.80m) Black
