ActiveMill-Max Manufacturing Corp.

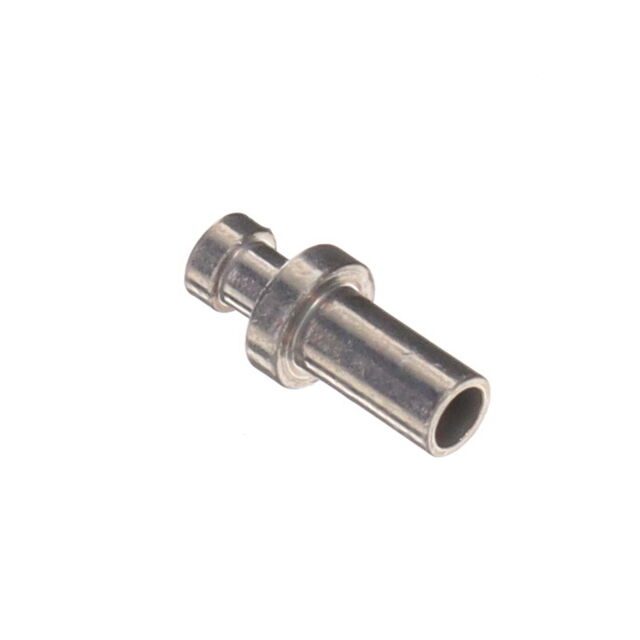

TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Search across all available documentation for this part.
2312-3-00-50-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2312-3-00-50-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.57 mm |
| Diameter - Turret Head [diameter] | 0.062 in |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.094 in |
| Length - Above Board [x] | 2.39 mm |
| Length - Below Flange [x] | 2.92 mm |
| Length - Below Flange [x] | 0.115 in |
| Length - Overall [x] | 5.31 mm |
| Length - Overall [x] | 0.209 in |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID | 1.17 mm |
| Staking Side ID | 0.046 in |
| Staking Side OD [diameter] | 0.06 " |
| Staking Side OD [diameter] | 1.52 mm |
| Terminal Type | Single End |
| Termination | Swage |
