P561-075

Active

Tripp Lite

AUDIO / VIDEO CABLE ASSEMBLY, DVI-D PLUG, DVI-D PLUG, 75 FT, 23 M, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

P561-075

Active

Tripp Lite

AUDIO / VIDEO CABLE ASSEMBLY, DVI-D PLUG, DVI-D PLUG, 75 FT, 23 M, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P561-075	- Series

	-	-
1st Connector Mounting Type	Free Hanging (In-Line), Mating Hardware	Free Hanging (In-Line), Mating Hardware, Free Hanging (In-Line), Free Hanging (In-Line), Latches
1st Connector Type	DVI-D Single Link, Male	DVI-D Dual Link, Male, DVI-D Single Link, Male, DisplayPort Male, Mini HDMI-C Male, Mini DisplayPort Male, HDMI-A Male
2nd Connector Mounting Type	Free Hanging (In-Line), Mating Hardware	Free Hanging (In-Line), Mating Hardware, Latches
2nd Connector Type	DVI-D Single Link, Male	DVI-D Dual Link, Male, DVI-D Single Link, Male, Mini DisplayPort Male, Mini HDMI-C Male, DisplayPort Female, DVI-D Male, DisplayPort Male, HDMI-A Female, DVI-D Dual Link, Female, Mini DisplayPort Female
Cable Type	Round	Round
Color	Black	Black, White
Length	22.86 m	1 - 50 '
Length	-	1.83 - 304.8 m
Length	-	3.05 - 914.4 m
Length	-	1.5 - 15 ft
Length	-	6 "
Length	-	0.5 '
Shielding	Shielded	Shielded, Double Shielded, Unshielded
Usage	Digital Visual Interface	Digital Visual Interface, High Definition Multimedia Interface, Multi Media

- Series

COMPUTER CABLE, DVI-D DUAL LINK PLUG, DVI-D DUAL LINK PLUG, 30 FT, 9.1 M, BLACK

Part	Cable Type	Usage	Length	Length	2nd Connector Mounting Type	Color	2nd Connector Type	1st Connector Mounting Type	Shielding	1st Connector Type	Length [x]	Length [x]
Tripp Lite P560-030	Round	Digital Visual Interface	30 '	9.14 m	Free Hanging (In-Line), Mating Hardware	Black	DVI-D Dual Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Dual Link, Male
Tripp Lite P561-010	Round	Digital Visual Interface			Free Hanging (In-Line), Mating Hardware	Black	DVI-D Single Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Single Link, Male	3.05 m	10 ft
Tripp Lite P561-18N	Round	Digital Visual Interface			Free Hanging (In-Line), Mating Hardware	Black	DVI-D Single Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Single Link, Male	457.2 mm	1.5 ft
Tripp Lite P560-003	Round	Digital Visual Interface			Free Hanging (In-Line), Mating Hardware	Black	DVI-D Dual Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Dual Link, Male	914.4 mm	3 ft
Tripp Lite P561-075	Round	Digital Visual Interface	22.86 m		Free Hanging (In-Line), Mating Hardware	Black	DVI-D Single Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Single Link, Male
Tripp Lite P566-012	Round	Digital Visual Interface, High Definition Multimedia Interface	12 ft	3.66 m	Free Hanging (In-Line)	Black		Free Hanging (In-Line), Mating Hardware	Double Shielded	DVI-D Single Link, Male
Tripp Lite P560-025	Round	Digital Visual Interface	25 ft	7.62 m	Free Hanging (In-Line), Mating Hardware	Black	DVI-D Dual Link, Male	Free Hanging (In-Line), Mating Hardware	Shielded	DVI-D Dual Link, Male
Tripp Lite P583-010	Round	Multi Media			Free Hanging (In-Line)	White	Mini DisplayPort Male	Free Hanging (In-Line)	Unshielded	DisplayPort Male	3.05 m	10 ft
Tripp Lite P570-008-OMICRO
Tripp Lite P572-006	Round	High Definition Multimedia Interface	6 ft	1.83 m	Free Hanging (In-Line)	Black	Mini HDMI-C Male	Free Hanging (In-Line)	Shielded	Mini HDMI-C Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.39
		10	$ 81.28
		25	$ 73.98
		50	$ 69.05
		100	$ 64.71

Description

General part information

- Series

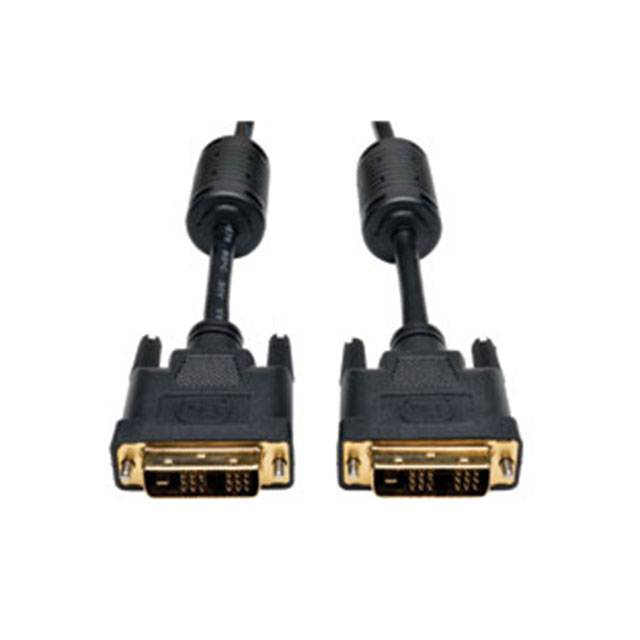

The P561-075 is a 23m DVI Single Link Cable with digital TMDS monitor. Tripp Lites DVI single link TMDS cable delivers the high performance, high bandwidth needed for today's digital video displays. Gold-plated contacts ensure excellent conductivity, while double shielding (foil and braid) provides maximum EMI/RFI protection. Use in conjunction with DVI video cards that are specified as single link. Both DVI connectors are molded, have integral strain relief for long life reliability and ferrite collars to drain off extraneous electrical interference. In most applications, a signal booster (B120-000-SL) will need to be used with this cable to ensure a signal strong enough for the display.
